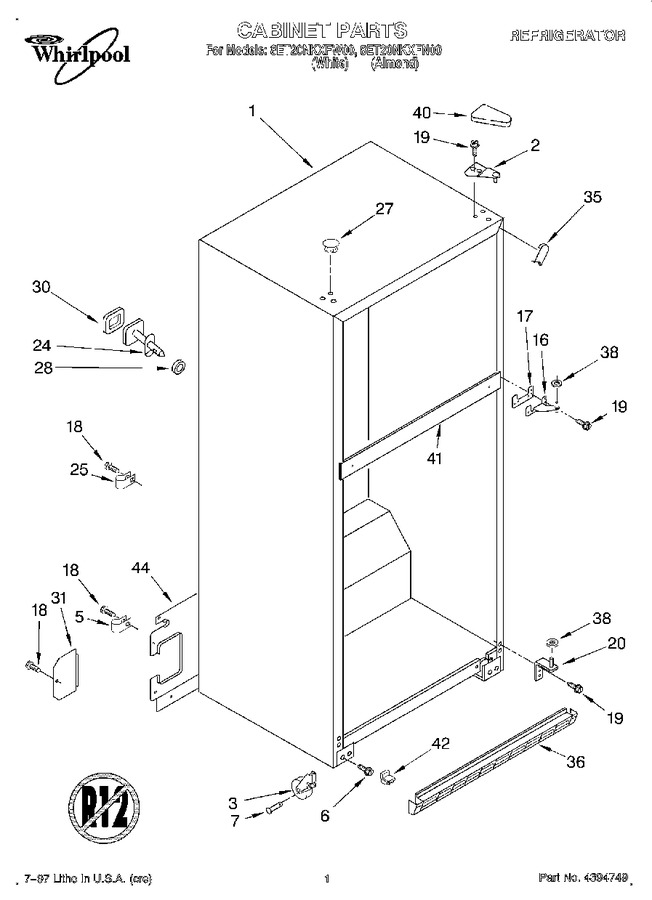

SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	WP2189412		Hinge (top)   (Replaces: 2189350)				$ 120.23
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 34.76
5	WP488366		Clamp, Tube (water Supply Line)   (Replaces: 489385)				$ 11.92
6	2174650		Screw		Appelez-nous	-
7	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 19.12
16	WP2254618		Hinge, Center   (Replaces: 2183972)			Immediately	$ 92.02
17	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 11.43
18	WP489464		Screw   (Replaces: 489464)			Immediately	$ 8.38
19	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
20	WP2254473		Hinge Butt   (Replaces: 2189194)				$ 9.28
24	N/A		Fitting, Water Tube (not Serviced)		Appelez-nous	-
25	549193		Clamp				$ 14.06
27	WP2151652		Hole Plug (6)   (Replaces: 2151652)				$ 22.87
28	N/A		Seal, Front (not Serviced)		Appelez-nous	-
30	N/A		Seal, Rear (not Serviced)		Appelez-nous	-
31	2166251		Cover, Water Valve				$ 6.43
35	2183979		Corner Filler (2) (almond)		Appelez-nous	-
35	WPW10283959		Corner Filler (2) (white)   (Replaces: 2183978)				$ 8.21
36	2183991		Grille (white)		Appelez-nous	-
36	2189155		Grille (almond)		Appelez-nous	-
38	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
40	WP2213360		Cover-hinge (white)   (Replaces: 2160403)				$ 20.19
40	2160404		Cover, Hinge (almond)		Appelez-nous	-
41	N/A		Rail Center (not Serviced)		Appelez-nous	-
42	2166204		Corner Filler, Grille (almond)		Appelez-nous	-
42	2166156		Corner Filler, Grille (white)		Appelez-nous	-
44	2189060		Cover, Unit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
