SELECT A DIAGRAM

01 - Cabinet


02 - Door


03 - Liner


04 - Unit


05 - Shelf, Lit/optional

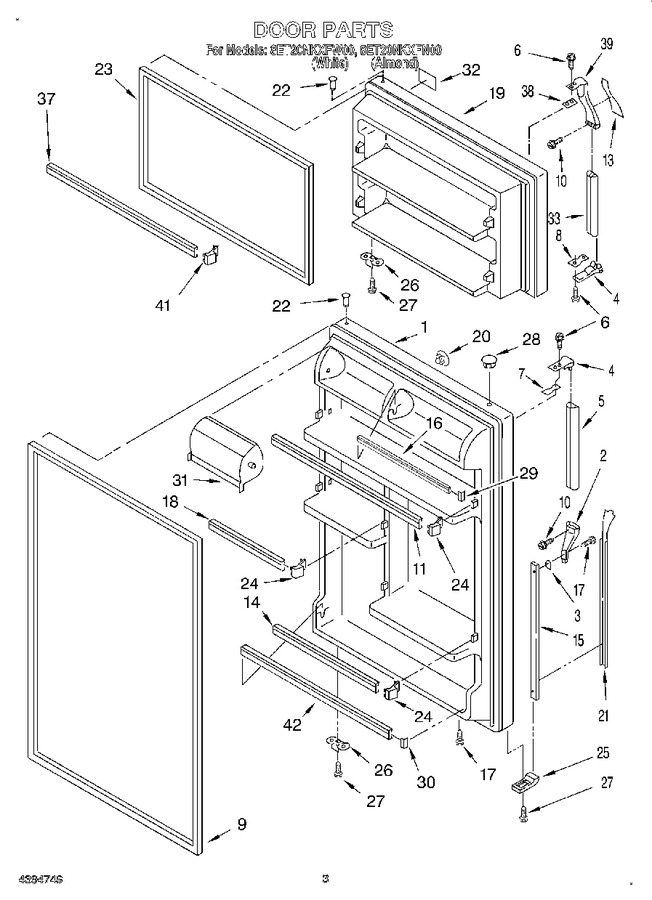

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183947		Refrigerator Door (includes No.9 & No.22) (almond)		Appelez-nous	-
1	2183946		Refrigerator Door (includes No.9 & No.22) (white)		Appelez-nous	-
2	1109189		End Cap		Appelez-nous	-
3	935075		Shim		Appelez-nous	-
4	944157		End Cap, Handle (2)		Appelez-nous	-
5	2150150		Handle, Center (white)		Appelez-nous	-
5	943068		Handle Center (almond)		Appelez-nous	-
6	WP488920		Screw   (Replaces: 489006)				$ 7.49
7	943188		Spacer				$ 7.80
8	935074		Shim		Appelez-nous	-
9	2159061		Door Gasket, Magnetic (mist Beige)			Immediately	$ 183.67
10	489022		Screw		Appelez-nous	-
11	2195379		Trim, Door Shelf		Appelez-nous	-
13	1108828		Insert, Handle (white)		Appelez-nous	-
13	1108830		Insert, Handle (almond)		Appelez-nous	-
14	WP2195943		Trim, Door Shelf   (Replaces: 2195367)				$ 87.41
15	2159417		Retainer		Appelez-nous	-
16	WP2201061		Trim, Door Shelf   (Replaces: 2195378)				$ 118.40
17	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.79
18	2195380		Trim, Door		Appelez-nous	-
19	2184400		Freezer Door (includes No.22 & No.23) (almond)		Appelez-nous	-
19	W11023679		Freezer Door (includes No.22 & No.23) (white)   (Replaces: 2182489)				$ 722.23
20	2189008		Hole Plug (almond)		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 7.40
21	2166784		Insert, Handle (almond)		Appelez-nous	-
21	2166438		Insert, Handle (white)		Appelez-nous	-
22	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
23	2159060		Door Gasket, Magnetic (mist Beige)				$ 320.01
24	WP2195915		Endcap, Trim   (Replaces: 2195915)				$ 13.07
25	1105804		Endcap		Appelez-nous	-
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
28	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.80
28	989196		Hole Plug (almond)		Appelez-nous	-
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
31	WP2218118		Compartment Door   (Replaces: 2177130)				$ 78.02
37	2171265		Trim-door (2)		Appelez-nous	-
38	943187		Shim				$ 25.14
39	944163		Handle End,				$ 53.54
41	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 12.55
42	WPW10421486		Trim, Door   (Replaces: 2177261)				$ 109.28
100	2182576		Featurepak (includes 11,14, 16,18,24,29,30, 31,37,41,42) Also See Shelf Page.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
