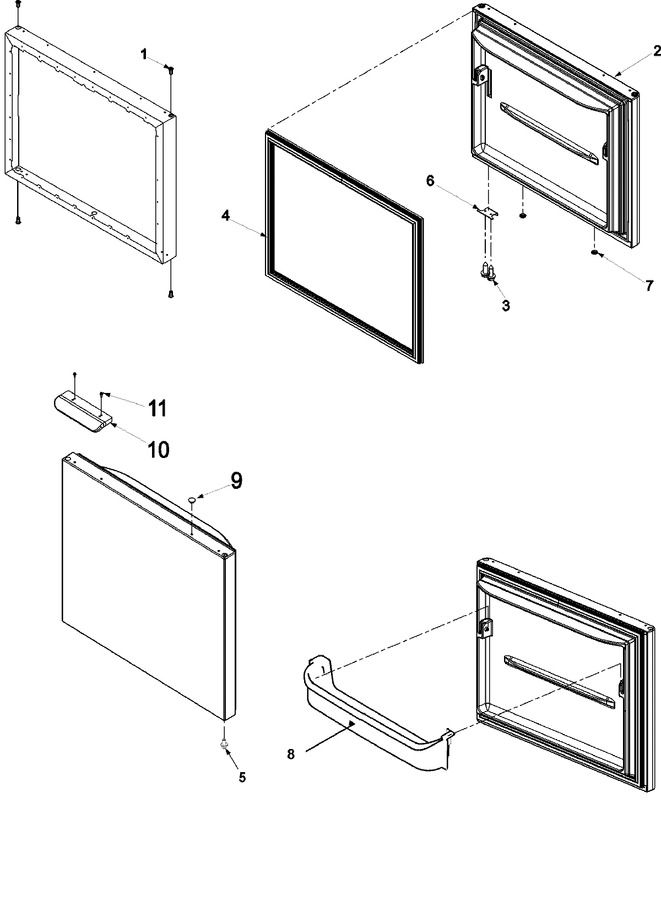

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004978		Bushing, Door (blk)	10			$ 21.05
2	67001022		Fz Dr Foam Assy (blk)	10	Appelez-nous	-
3	WP98165		Screw   (Replaces: 67006287)	10			$ 8.00
4	WPW10436250		Gasket, Fz Door (blk)   (Replaces: 67003555)	10		Immediately	$ 347.99
5	WPM0274062		Shim, Non Metal (blk)   (Replaces: M0274062)	10		Immediately	$ 24.43
6	W11708403		Stop, Door (blk)   (Replaces: 67003780)	10		Immediately	$ 14.05
7	67004838		Plug, Vent (blk)	10			$ 10.68
8	67003934		Retainer, Fz Door	10			$ 22.73
9	WP12246608		Plug, Handle Hole (blk)   (Replaces: 12246603)	10		Immediately	$ 7.76
10	67005125		Handle, Fz Dr (black)	10			$ 142.03
11	WPW10348409		Screw   (Replaces: 67006831)	10		Immediately	$ 7.76
