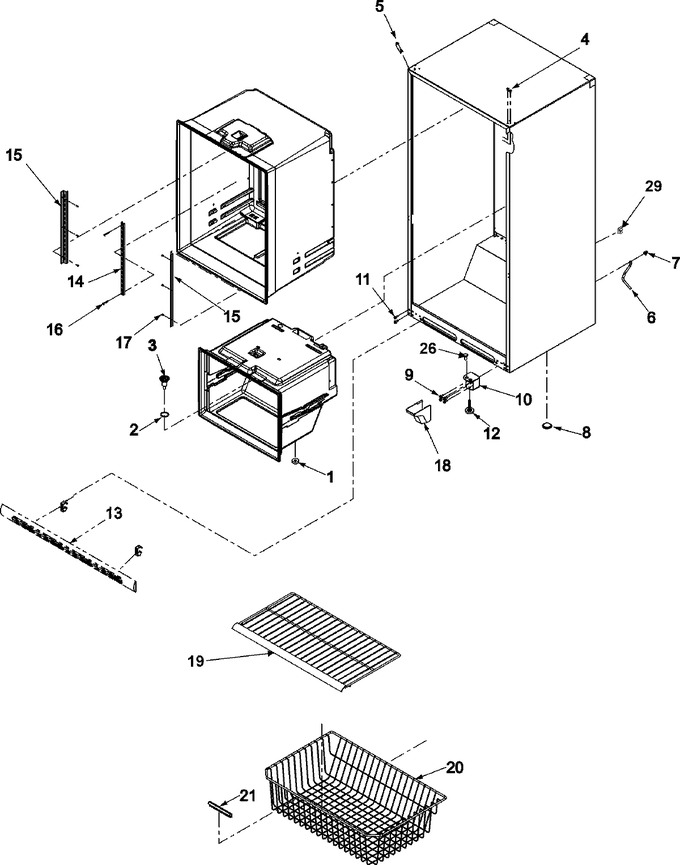

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)	10			$ 7.41
2	WPM0500703		Seal, O Ring   (Replaces: M0500703)	10			$ 10.92
3	W10815413		Funnel, Drain   (Replaces: D7753903)	10		Immediately	$ 49.05
4	A4539607		Pop Rivet	10	Appelez-nous	-
5	67003485		Cover, Corner (blk)	10		Immediately	$ 21.09
6	67001066		Tube, Drain	10			$ 55.82
7	67001067		Clip, Drain Tube	10			$ 9.20
8	A3076901		Plug-button	10			$ 5.70
9	67006491		Screw	10			$ 7.47
10	67001068		Hinge, Bottom E-ct (blk)	10	Appelez-nous	-
11	WP67006715		Screw   (Replaces: 67006715)	10			$ 7.19
12	W11177593		Brake, Foot   (Replaces: 67003868)	10			$ 11.60
13	67002224		Toe Grille Assy (blk)				$ 38.59
14	67001073		Ladder, Center	10			$ 54.18
15	67001317		Ladder, Sides	10			$ 39.13
16	W10709795		Screw   (Replaces: 67006360)	10			$ 13.13
17	67006425		Screw, Sm   (Replaces: 67006400)	10		Immediately	$ 6.95
19	67001075		Shelf, Frz.		Appelez-nous	-
20	67003330		Basket, Lower 33``	10	Appelez-nous	-
21	10508506		Handle, Basket/shelf	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
