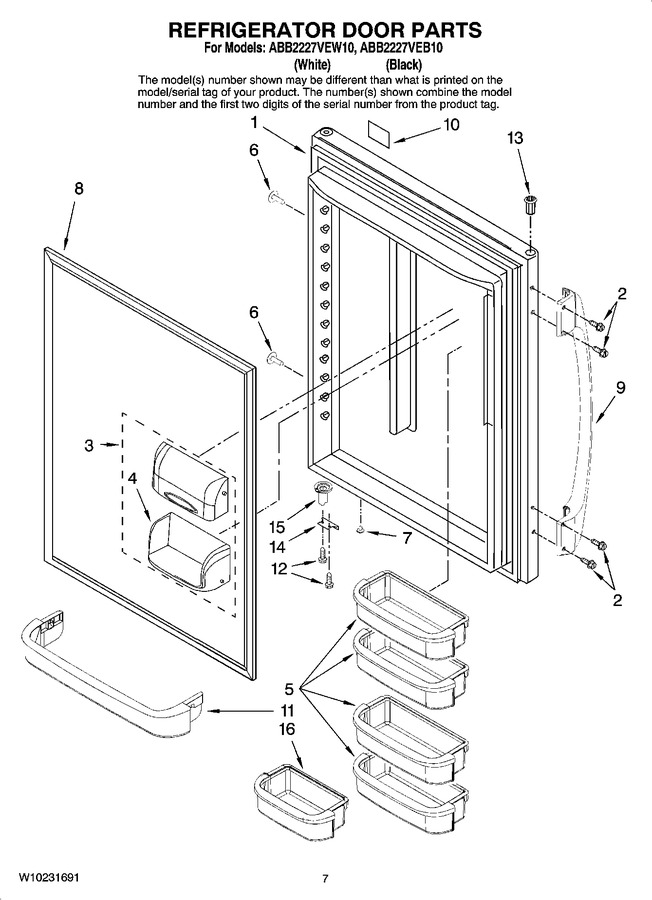

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004329 | Refrigerator Door (w/liner) (black) |
|
- | |||||
| 1 | 67004363 | Refrigerator Door (w/liner) (white) |
|
- | |||||
| 2 | 67006668 | Screw |
|
$ 12.83 | |||||
| 3 | WP12744905 | Door, Dairy (Replaces: 67003819) |
|
$ 113.99 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371193 | Bucket, Medium (4) (Replaces: 67003775) |
|
Immediately | $ 74.80 | ||||
| 6 | 67007166 | Screw,handle Hole (black) |
|
- | |||||
| 6 | 12991103 | Screw, Handle Hole (white) |
|
$ 12.03 | |||||
| 7 | 67004838 | Plug, Button (black) |
|
$ 11.21 | |||||
| 7 | 10712401 | Plug, Button (white) |
|
$ 7.79 | |||||
| 8 | W10443313 | Door Gasket, Magnetic (white) (Replaces: W10164034) |
|
$ 361.01 | |||||
| 8 | WPW10436248 | Door Gasket, Magnetic (black) (Replaces: W10164035) |
|
$ 286.97 | |||||
| 9 | 67006721 | Door Handle (white) |
|
- | |||||
| 9 | 67006805 | Door Handle (black) |
|
- | |||||
| 10 | Y12528501 | Nameplate (Replaces: 12528501) |
|
Immediately | $ 62.74 | ||||
| 11 | 67001019 | Retainer, Ref Door |
|
Immediately | $ 112.90 | ||||
| 12 | WP98165 | Screw (Replaces: 67006287) |
|
$ 8.57 | |||||
| 13 | 67004978 | Bushing (black) |
|
$ 22.10 | |||||
| 13 | WP67004977 | Bushing (white) (Replaces: 67004977) |
|
$ 8.20 | |||||
| 14 | W11708403 | Stop, Door (black) (Replaces: 67003780) |
|
Immediately | $ 14.75 | ||||
| 14 | 12968202W | Stop, Door (white) (Replaces: 67003779) |
|
$ 69.29 | |||||
| 15 | WP67003638 | Closure, Door (white) (Replaces: 67003638) |
|
Immediately | $ 8.15 | ||||
| 15 | WP67003639 | Closure, Door (black) (Replaces: 67003639) |
|
$ 90.32 | |||||
| 16 | WPW10371194 | Bucket, Short (Replaces: 67004451) |
|
Immediately | $ 77.23 |
