SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts

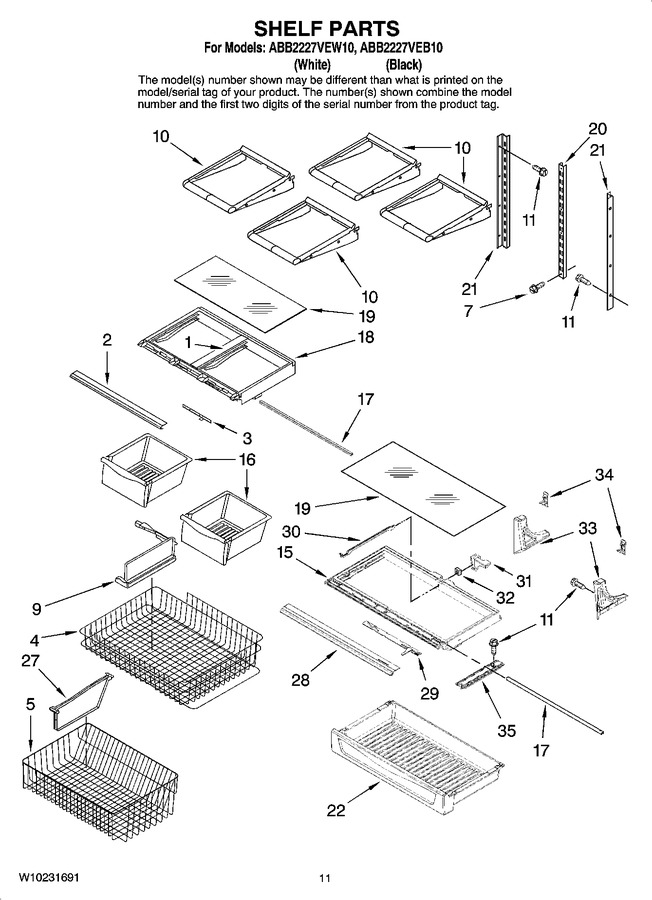

07 - Shelf Parts


08 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10671238		Rail, Center Crisper   (Replaces: 67001057)			Immediately	$ 112.82
2	67004420		Trim, Crisper		Appelez-nous	-
3	WP67005864		Slide, Humidity Control   (Replaces: 67005864)			Immediately	$ 7.81
4	W10201223		Basket, Upper		Appelez-nous	-
5	WPW10503183		Basket, Freezer (lower)   (Replaces: W10150038)			Immediately	$ 237.48
7	W10709795		Screw   (Replaces: 67006360)				$ 13.13
9	W10171557		Divider Top		Appelez-nous	-
10	W11402523		Shelf, Sta (4)   (Replaces: 12463509)			Immediately	$ 221.39
11	67006425		Screw   (Replaces: 67006400)			Immediately	$ 6.95
15	67002656		Frame, Pantry		Appelez-nous	-
16	67005906		Pan, Crisper (2)				$ 65.96
17	WP12227303WD		Brace, Crisper (2)   (Replaces: 67001059)				$ 105.95
18	WPW10568041		Frame, Crisper   (Replaces: 67001056)			Immediately	$ 137.23
19	WP67006878		Glass, Crisper (2)   (Replaces: 67006878)			Immediately	$ 185.19
20	67001073		Ladder, Center				$ 54.18
21	67001317		Ladder, Side				$ 39.13
22	WPW10328329		Pan, Pantry   (Replaces: 67005893)				$ 154.44
27	W10205416		Divider, Lower		Appelez-nous	-
28	W10656985		Trim, Pantry   (Replaces: 67001913)				$ 131.12
29	67002002		Slide,pantry			Immediately	$ 16.04
30	67002003		Bar,pantry				$ 47.06
31	WP12531601		Tunnel,pantry   (Replaces: 67002004)				$ 10.51
32	67002005		Gasket		Appelez-nous	-
33	WP67001721		Support, Left   (Replaces: 67001721)			Immediately	$ 8.70
33	WP67001722		Support, Right   (Replaces: 67001722)			Immediately	$ 8.93
34	WP67001716		Hook, Ladder   (Replaces: 67001716)			Immediately	$ 10.61
35	WP67001719		Track   (Replaces: 67001719)			Immediately	$ 8.56

    View Diagram in Separate Window       Print Part List
