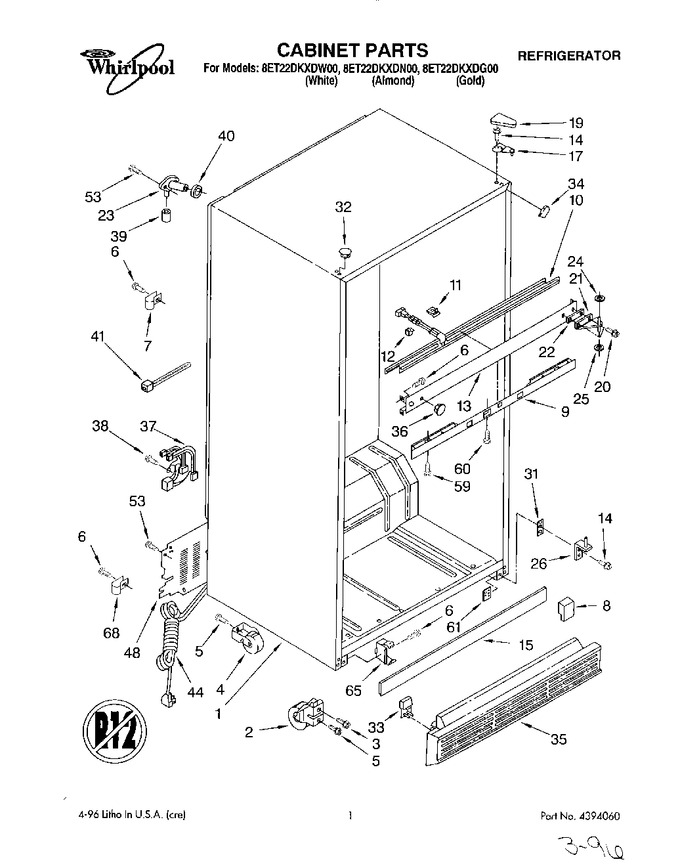

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Unit


06 - Refrigerator Door


07 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	2174748		Roller, Front		Appelez-nous	-
3	W10850698		Screw   (Replaces: 489456)				$ 14.42
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 42.18
5	WP489427		Screw   (Replaces: 489427)				$ 7.84
6	WP489478		Screw   (Replaces: 489242)				$ 8.18
7	WP488366		Clamp, Tube   (Replaces: 489385)				$ 11.92
8	2176796		Insert, Air Baffle		Appelez-nous	-
9	2148533		Control, Front Cover		Appelez-nous	-
10	2157307		Heater, Mullion		Appelez-nous	-
11	1129018		Clip, Rail (4)		Appelez-nous	-
12	2149077		Spacer (3)		Appelez-nous	-
13	2179453		Center Rail		Appelez-nous	-
14	WP999367		Screw   (Replaces: 489367)				$ 8.56
15	2172708		Deck Rail Cover		Appelez-nous	-
17	WP2189412		Hinge, Top   (Replaces: 2157591)				$ 120.23
19	WP2213360		Hinge Cover (gold)   (Replaces: 2160405)				$ 20.19
19	WP2213360		Hinge Cover (white)   (Replaces: 2160403)				$ 20.19
19	2160404		Hinge Cover (almond)		Appelez-nous	-
20	WP999367		Screw   (Replaces: 489105)				$ 8.56
21	2151453		Hinge, Center		Appelez-nous	-
22	836194		Shim, Hinge Center		Appelez-nous	-
23	WP2196157		Fitting, Water Tube   (Replaces: 2174759)			Immediately	$ 12.59
24	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.91
25	489200		Washer (black)				$ 7.75
25	WP487802		Washer, White   (Replaces: 488184)			Immediately	$ 7.91
26	WP2254473		Hinge Butt, Bottom   (Replaces: 2157300)				$ 9.28
31	2172744		Spacer		Appelez-nous	-
32	WP2151652		Hole Plug (white)   (Replaces: 2151652)				$ 22.87
32	2151653		Hole Plug (almond)		Appelez-nous	-
32	2151654		Hole Plug (gold)		Appelez-nous	-
33	1118078		Corner Filler, Grille (black)		Appelez-nous	-
33	1125670		Corner Filler, Grille (almond)		Appelez-nous	-
33	1125665		Corner Filler, Grille (white)		Appelez-nous	-
34	1118059		Filler, Wrap Corner (almond)		Appelez-nous	-
34	1118058		Filler, Wrap Corner (white)		Appelez-nous	-
34	2162679		Filler, Wrap Corner (black)		Appelez-nous	-
35	1125663		Grille (white)		Appelez-nous	-
35	1129001		Grille (black)		Appelez-nous	-
35	1125667		Grille (almond)		Appelez-nous	-
36	1129062		Hole Plug		Appelez-nous	-
37	2158626		Wiring Assy. Intermediate		Appelez-nous	-
38	WP250830		Screw, 8-32 X 1/2   (Replaces: 489048)				$ 8.78
39	WP487996		Cap   (Replaces: 487996)				$ 8.67
40	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 10.43
41	WPW10339879		Strap, Mtg.   (Replaces: 2155774)				$ 8.30
44	937360		Cord, Service		Appelez-nous	-
48	2183166		Cover, Unit		Appelez-nous	-
53	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
59	WP488163		Screw, 8 X 13/16   (Replaces: 488725)				$ 7.92
60	WP489174		Screw   (Replaces: 489174)				$ 7.30
61	2157315		Tap-plate, Bottom Hinge		Appelez-nous	-
65	WP2155013		Clip, Grille Retainer (2)   (Replaces: 2155013)			Immediately	$ 8.11
68	549193		Clamp				$ 14.06

    View Diagram in Separate Window       Print Part List
