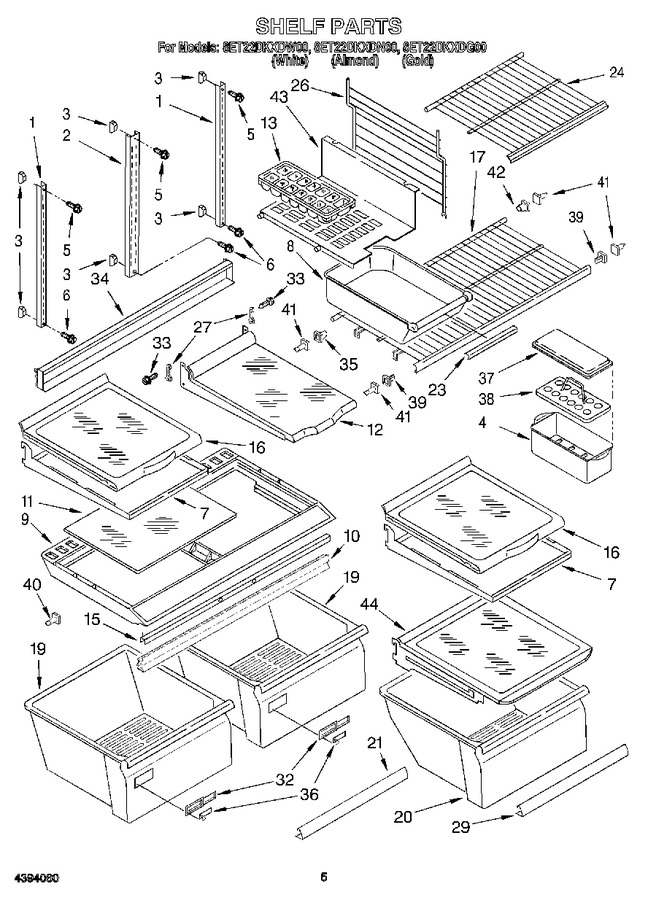

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Compartment Separator


04 - Shelf


05 - Unit


06 - Refrigerator Door


07 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (6)				$ 29.86
4	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 18.61
5	489345		Screw,		Appelez-nous	-
6	WP489474		Screw, 8 X 1-1/4   (Replaces: 489450)			Immediately	$ 7.97
7	2174036		Shelf, Cantilever (2)		Appelez-nous	-
8	2174616		Bucket, Ice		Appelez-nous	-
9	2179420		Crisper Cover		Appelez-nous	-
10	2179392		Gasket, Crisper Cover		Appelez-nous	-
11	2174143		Glass, Crisper Cover		Appelez-nous	-
12	2174224		Shelf, Slide (side To Side)		Appelez-nous	-
13	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 45.56
15	WP2172748		Support, Crisper   (Replaces: 2172748)				$ 97.22
16	2174035		Shelf Assembly, Spillguard		Appelez-nous	-
17	1125540		Shelf, Freezer		Appelez-nous	-
19	2179411		Pan, Crisper		Appelez-nous	-
20	2179412		Pan, Meat		Appelez-nous	-
21	WP2179234		Trim, Handle   (Replaces: 2179239)				$ 84.35
23	2176360		Trim, Ice Bucket		Appelez-nous	-
24	2179445		Shelf, Freezer (top)		Appelez-nous	-
26	2179446		Divider		Appelez-nous	-
27	2169608		Hook, Shelf		Appelez-nous	-
29	WP2179243		Trim, Handle   (Replaces: 2179244)				$ 104.43
32	WP2179343		Front, Crisper Pan   (Replaces: 2179343)				$ 32.40
33	489419		Screw		Appelez-nous	-
34	2169793		Slide Track Assy., Shelf		Appelez-nous	-
35	819091		Shelf Stud, L.s.   (Replaces: 946358)				$ 39.68
36	WP2179342		Slide, Humidity Control   (Replaces: 2179342)				$ 29.14
37	2169935		Cover		Appelez-nous	-
38	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 17.89
39	946356		Shelf Stud		Appelez-nous	-
40	1106612		Shelf Stud (2)				$ 7.56
41	946355		Support, Stud		Appelez-nous	-
42	819091		Shelf Stud, R.s.   (Replaces: 946357)				$ 39.68
43	1125543		Shelf, Ice Compartment		Appelez-nous	-
44	2174043		Shelf, Meat Pan		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
