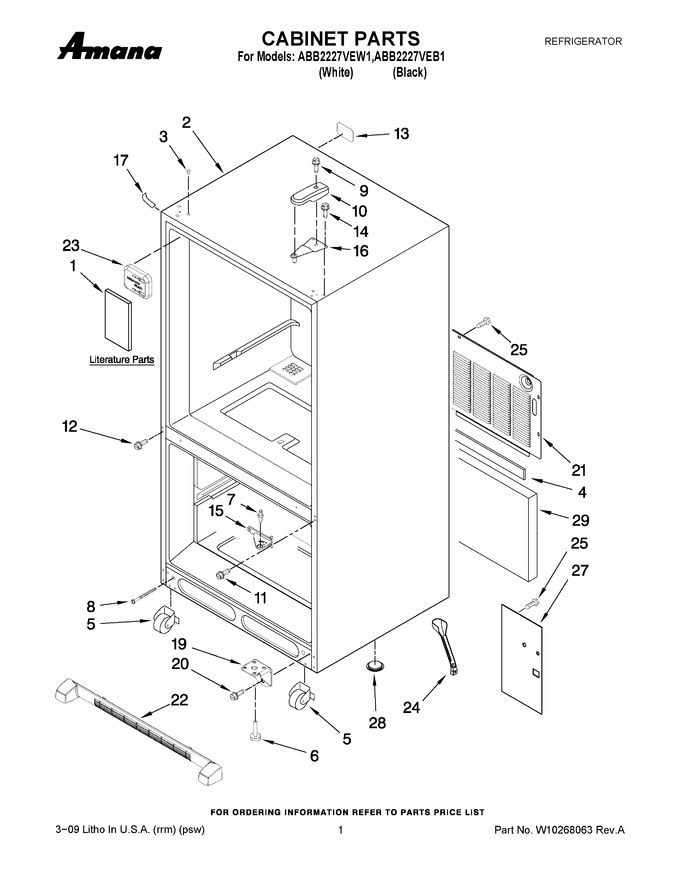

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10238840 | Tech Sheet |
|
- | |||||
| 1 | W10208785 | Use & Care Guide |
|
- | |||||
| 1 | W10212713 | Energy Guide |
|
- | |||||
| 2 | N/P | Cabinet (not A Servicable Part) |
|
- | |||||
| 3 | WP12246608 | Plug, Button (3) (black) (Replaces: M0310731) |
|
Immediately | $ 8.15 | ||||
| 3 | WP67001130 | Plug, Button (3) White (Replaces: M0310729) |
|
Immediately | $ 5.98 | ||||
| 4 | B5759649 | Gasket |
|
- | |||||
| 5 | 12580304 | Roller Assembly |
|
$ 5.84 | |||||
| 6 | W11177593 | Foot, Brake (Replaces: 10354002) |
|
$ 12.18 | |||||
| 7 | WP67006642 | Pin, Center Hinge (Replaces: 10351006) |
|
$ 8.78 | |||||
| 8 | 71003131 | Bolt, Adjusting (front Roller) (Replaces: 12606103) |
|
Immediately | $ 7.08 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.55 | ||||
| 10 | 67001012 | Cover, Hinge (black) (Replaces: 12477601B) |
|
$ 49.71 | |||||
| 10 | 67001014 | Cover, Hinge White (Replaces: 12477601W) |
|
$ 22.34 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 8.43 | ||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.57 | |||||
| 13 | W11685757 | Label, Fl Tb Plug (Replaces: 12249902) |
|
$ 7.41 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 8.43 | ||||
| 15 | W11689473 | Hinge, Center White (Replaces: 12607103WD) |
|
$ 69.79 | |||||
| 15 | WP12607104ED | Hinge, Center (black) (Replaces: 12607104ED) |
|
$ 167.35 | |||||
| 16 | WP12566606ED | Hinge, Top (Replaces: 12566606ED) |
|
Immediately | $ 47.13 | ||||
| 17 | 12587703W | Cover, Corner White |
|
$ 22.90 | |||||
| 17 | 67003485 | Cover, Corner (black ) (Replaces: 12587703B) |
|
Immediately | $ 22.14 | ||||
| 19 | 12906303WD | Hinge Bottom |
|
$ 88.58 | |||||
| 20 | 67006564 | Screw (Replaces: 12991302) |
|
Immediately | $ 8.15 | ||||
| 21 | WPW10210979 | Cover, Unit (Replaces: W10210979) |
|
$ 206.23 | |||||
| 22 | WPW10534162 | Grille Assembly (includes Clips) (black) (Replaces: W10236196) |
|
$ 148.16 | |||||
| 22 | WPW10534161 | Grille Assembly (includes Clips) (white) (Replaces: W10236195) |
|
$ 147.09 | |||||
| 23 | WP67001098 | Cover, Fl Tb (Replaces: 12477501) |
|
$ 8.43 | |||||
| 24 | W10619951 | Tube, Drain (Replaces: W10210988) |
|
Immediately | $ 42.39 | ||||
| 25 | 67006425 | Screw (9) (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 27 | W11684617 | Cover, Water Valve (Replaces: W10217701) |
|
$ 21.36 | |||||
| 28 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 29 | 12820505 | Pad, Acoustic |
|
$ 71.70 |
