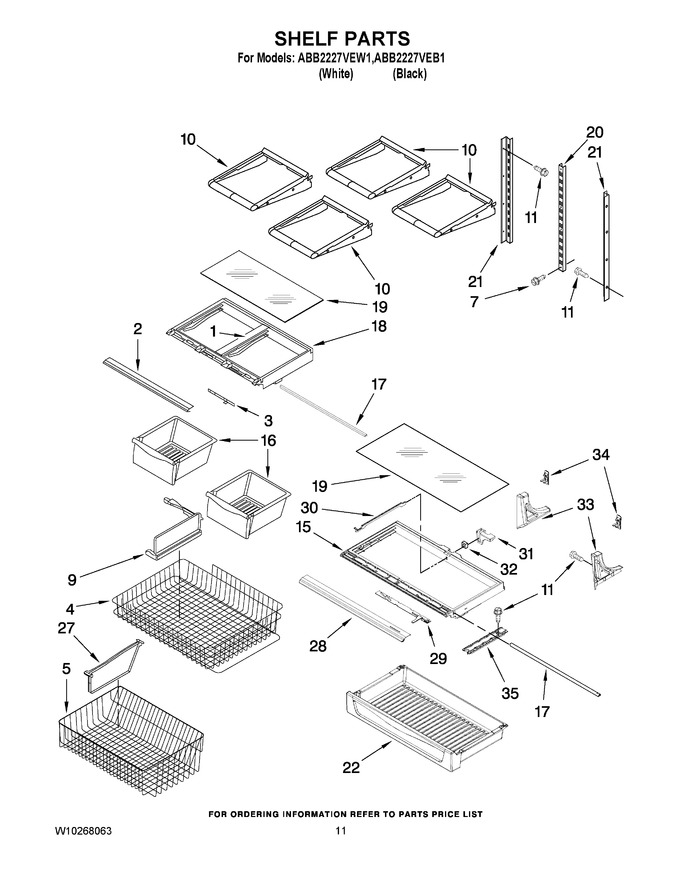

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10671238		Rail, Center Crisper   (Replaces: 12530701)			Immediately	$ 118.46
2	W10231341		Trim, Crisper				$ 50.13
3	WP67005864		Slide, Humidity Control   (Replaces: 12530805SP)			Immediately	$ 8.20
4	W10201223		Basket, Upper		Appelez-nous	-
5	WPW10503183		Basket, Freezer (lower)   (Replaces: W10150038)			Immediately	$ 249.35
7	W10709795		Screw   (Replaces: 12990515)				$ 13.79
9	W10241046		Divider, Top			Immediately	$ 29.19
10	W11402523		Shelf, Sta (4)   (Replaces: 12463509)			Immediately	$ 232.46
11	67006425		Screw   (Replaces: 12990513)			Immediately	$ 7.30
15	12724003		Frame, Pantry		Appelez-nous	-
16	12724122N		Pan, Crisper (2)		Appelez-nous	-
17	WP12227303WD		Brace, Crisper (2)   (Replaces: 12227303WD)				$ 111.25
18	WPW10568041		Frame, Crisper   (Replaces: 12530401SP)			Immediately	$ 137.23
19	WP67006878		Glass, Crisper (2)   (Replaces: 12204822)			Immediately	$ 185.19
20	67001073		Ladder, Center   (Replaces: 12435807)				$ 56.89
21	12710602		Ladder, Side		Appelez-nous	-
22	WPW10328329		Pan, Pantry   (Replaces: 12645020)				$ 162.16
27	W10205416		Divider, Lower		Appelez-nous	-
28	W10656985		Trim, Pantry   (Replaces: W10231333)				$ 137.68
29	12531502		Slide,pantry		Appelez-nous	-
30	12531401		Bar, Pantry		Appelez-nous	-
31	WP12531601		Tunnel, Pantry   (Replaces: 12531601)				$ 11.04
32	12531701		Gasket		Appelez-nous	-
33	WP67001721		Support-left   (Replaces: 12531001)			Immediately	$ 8.70
33	WP67001722		Support-right   (Replaces: 12531002)			Immediately	$ 8.93
34	WP67001716		Hook, Ladder   (Replaces: 12531802)			Immediately	$ 11.14
35	WP67001719		Track   (Replaces: 12531901)			Immediately	$ 8.99
