SELECT A DIAGRAM

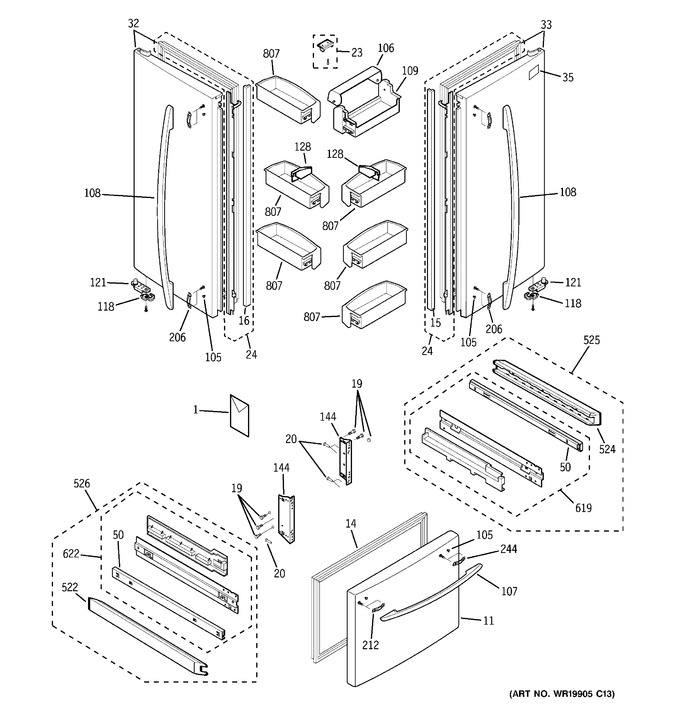

1 - Doors


2 - Cabinet


3 - Shelves


4 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-46168		Install Instuctions		Appelez-nous	-
1	31-51651		Mini Manual		Appelez-nous	-
1	49-60452		Use & Care		Appelez-nous	-
11	WR78X10943		Door Asm,fzr Ww		Appelez-nous	-
14	WR14X10184		Gasket Asm,fz		Appelez-nous	-
15	WG03L00103		Gasket Cvr Rh   (Replaces: WR17X11989)				$ 57.27
16	WG03L00102		Gasket Cvr Lh   (Replaces: WR17X11990)				$ 55.76
19	WR01X10637		Screw Drawing		Appelez-nous	-
20	WR01X10638		Screw Drawing		Appelez-nous	-
23	WG03L01440		Holder,gasket   (Replaces: WR02X12136)				$ 161.35
24	WR24X10175		Gasket Asm,door Ff Ww		Appelez-nous	-
32	WR78X11412		Door Asm Ff Lh Ww		Appelez-nous	-
33	WR78X11413		Door Asm Ff Rh Ww		Appelez-nous	-
35	WR04X10152		Nameplate		Appelez-nous	-
50	WR17X11931		Rail Asm		Appelez-nous	-
105	WR01X10446		Bolt-door Handle		Appelez-nous	-
106	WG03L01159		Dairy Door Cvr   (Replaces: WR02X11706)				$ 62.33
107	WR12X10670		Handle Fzr Door Ww		Appelez-nous	-
108	WR12X10669		Handle Ff Door Ww		Appelez-nous	-
109	WR71X10549		Dairy Bin		Appelez-nous	-
118	WR02X12072		Door Closure Mech		Appelez-nous	-
121	WR02X11720		Stopper Door Wh		Appelez-nous	-
128	WG03L01630		Snugger   (Replaces: WR02X11680)				$ 17.01
144	WR02X11687		Connector Door		Appelez-nous	-
206	WR02X11679		Bracket Handle Ff		Appelez-nous	-
212	WR02X11678		Bracket Handle Fzr Left		Appelez-nous	-
244	WR02X11677		Bracket Handle Fz Right		Appelez-nous	-
522	WR02X12035		Rail Support Left		Appelez-nous	-
524	WR02X12036		Rail Support Right		Appelez-nous	-
525	WR17X12054		Rail Asm Rh		Appelez-nous	-
526	WR17X12055		Rail Asm Lh		Appelez-nous	-
619	WR17X11587		Connector Asm Right		Appelez-nous	-
622	WR17X11588		Connector Asm Left		Appelez-nous	-
807	WR17X11606		Door Bin		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
