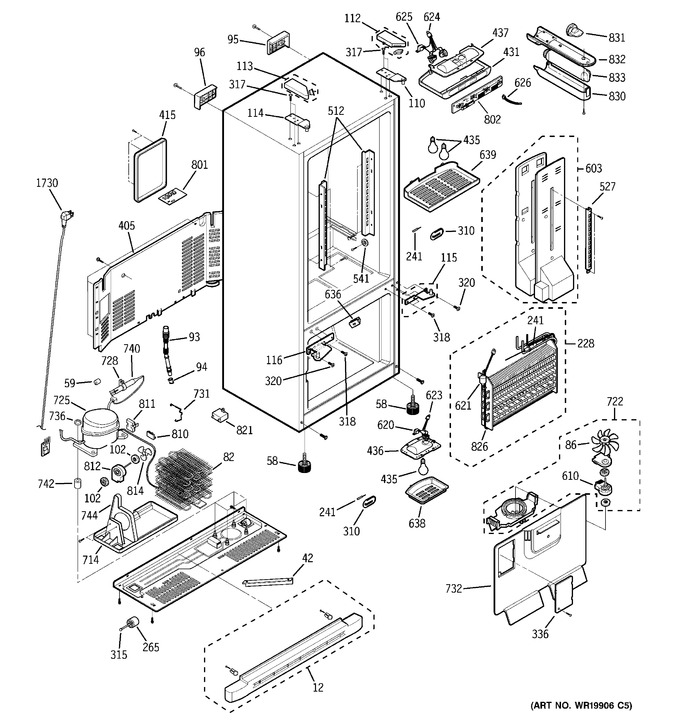

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Doors
2 - Cabinet
3 - Shelves
4 - Water System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | WR74X10206 | Cover Asm,lower |
|
- | |||||
| 42 | WR02X12064 | Air Divider |
|
- | |||||
| 58 | WR02X12262 | Levelling Leg |
|
- | |||||
| 59 | WR02X11696 | Rubber,damping |
|
- | |||||
| 82 | WR84X10057 | Condenser Asm |
|
- | |||||
| 86 | WR60X10147 | Evap Fan Blade |
|
- | |||||
| 93 | WR02X11697 | Drain Tube |
|
- | |||||
| 94 | WR02X12074 | Drain Cap |
|
- | |||||
| 95 | WR02X12141 | Support Cab Left Wh |
|
- | |||||
| 96 | WR02X12140 | Support Cab Right Wh |
|
- | |||||
| 102 | WR02X11694 | Grommet - Rubber |
|
- | |||||
| 110 | WR13X10375 | Hinge Asm Upper Rh |
|
- | |||||
| 112 | WR02X12290 | Cvr Asm Hinge R W/s Wh |
|
- | |||||
| 113 | WR02X12291 | Cvr Asm Hinge L W/s Wh |
|
- | |||||
| 114 | WG03L01419 | Hinge Asm Upper Lh (Replaces: WR78X11409) |
|
$ 84.06 | |||||
| 115 | WR13X10376 | Hinge Asm Center Rh Ww |
|
- | |||||
| 116 | WR13X10377 | Hinge Asm Center Lh Ww |
|
- | |||||
| 228 | WR85X10057 | Evaporator Asm |
|
- | |||||
| 241 | WR01F01730 | Sensor (Replaces: WR55X10025) |
|
Immediately | $ 16.29 | ||||
| 265 | WG03A00414 | Roller (Replaces: WR02X11698) |
|
$ 24.78 | |||||
| 310 | WR02X11664 | Cover Thermistor |
|
- | |||||
| 315 | 4J04238A | Roller Pin |
|
Immediately | $ 6.11 | ||||
| 317 | WG03L01091 | Hinge Upper Bolt (Replaces: WR01X10524) |
|
$ 6.95 | |||||
| 318 | WR01X10472 | Hinge Cntr Bolt Ww |
|
- | |||||
| 320 | WR01X10473 | Screw Hinge Center Wh |
|
- | |||||
| 336 | WR02X11669 | Cover Grille Fan |
|
- | |||||
| 405 | WR02X11670 | Access Cover |
|
- | |||||
| 415 | WR02X12269 | Cover Pwb |
|
- | |||||
| 431 | WR17X11976 | Case Asm,display |
|
- | |||||
| 435 | 60A | Lamp Incandescent |
|
- | |||||
| 436 | WR02X11656 | Reflector,lamp Fz |
|
- | |||||
| 437 | WR02X11657 | Reflector,lamp Ff |
|
- | |||||
| 512 | WR72X10151 | Holder Shelf |
|
- | |||||
| 527 | WR71X10541 | Holder Shelf |
|
- | |||||
| 541 | WG03L01667 | Holder, Bracket (Replaces: WR02X11683) |
|
$ 9.25 | |||||
| 603 | WR09X10114 | Damper Asm |
|
- | |||||
| 610 | WR01F02490 | Evap Motor Fan (Replaces: WR60X10196) |
|
Immediately | $ 161.50 | ||||
| 620 | WR50X10044 | Thermostat-bi-metal |
|
- | |||||
| 621 | WR50X10047 | Thermodisc(fuse-m) |
|
- | |||||
| 623 | WR02X11699 | Socket Asm,lamp Fz |
|
- | |||||
| 624 | WR02X11700 | Socket Asm,lamp Ff |
|
- | |||||
| 625 | WR50X10050 | Thermodisc Ff |
|
- | |||||
| 626 | WR23X10430 | Harness,joint |
|
- | |||||
| 636 | WG03F05844 | Switch Light Fz (Replaces: WR23X10342) |
|
Immediately | $ 65.21 | ||||
| 638 | WR02X11658 | Cover Lamp Fz |
|
- | |||||
| 639 | WG03L01137 | Cover Lamp,ff (Replaces: WR02X12066) |
|
$ 43.37 | |||||
| 714 | WR30X10048 | Tray Drip |
|
- | |||||
| 722 | WR01F02490 | Evap Motor Asm (Replaces: WR60X10146) |
|
Immediately | $ 161.50 | ||||
| 725 | WG03F00133 | Comp. Repl. Kit (Replaces: WR87X10097) |
|
Immediately | $ 1,045.82 | ||||
| 728 | WR02X11702 | Holder Drier |
|
- | |||||
| 731 | WR02X12075 | Retainer Clip |
|
- | |||||
| 732 | WG03L01285 | Evap Fan Cvr Asm (Replaces: WR17X11594) |
|
$ 123.85 | |||||
| 736 | WR02X11306 | Stopper Comp |
|
- | |||||
| 740 | WG03A03157 | Drier (Replaces: WR86X96) |
|
Immediately | $ 153.40 | ||||
| 742 | WR02X11787 | Grommet - Rubber |
|
- | |||||
| 744 | WR17X11583 | Guide Fan |
|
- | |||||
| 801 | WR01F00173 | Board Asm Main Control (Replaces: WR55X10526) |
|
Immediately | $ 272.87 | ||||
| 802 | WG03F00507 | Pwb Display Asm (Replaces: WR55X10522) |
|
Immediately | $ 176.15 | ||||
| 810 | WG03F02235 | P.t.c. + Olp Assy (Replaces: WR07X10097) |
|
Immediately | $ 185.47 | ||||
| 811 | WR08X10061 | Overload |
|
- | |||||
| 812 | WG03F00168 | Condenser Fan Motor (Replaces: WR84X10055) |
|
Immediately | $ 171.70 | ||||
| 814 | WG03F00276 | Condenser Fan Blade (Replaces: WR60X10148) |
|
$ 41.29 | |||||
| 821 | WR62X10040 | Capacitor |
|
- | |||||
| 826 | WR50X10042 | Defrost Heater |
|
- | |||||
| 830 | WR02X11713 | Cover,filter(lower) |
|
- | |||||
| 831 | WG03A03769 | Cap Filter Bypass (Replaces: WR02X11613) |
|
$ 44.46 | |||||
| 832 | WR02X11714 | Cover Filter(upper) |
|
- | |||||
| 833 | WG03F00675 | Water Filter Catridge (Replaces: GSWF) |
|
Immediately | $ 91.34 | ||||
| 1730 | WG03F00911 | Power Cord Asm (Replaces: WR23X10300) |
|
$ 85.41 |
