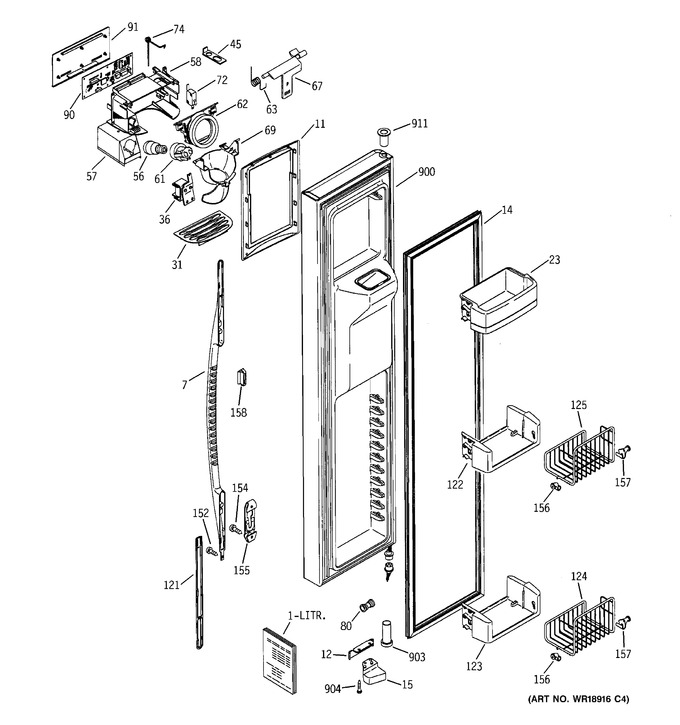

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-51360 | Mini Manual Wiring |
|
- | |||||
| 1 | 49-60157 | Pm Guide Owners |
|
- | |||||
| 7 | WR12X10430 | Handle Sxs Asm Bk |
|
- | |||||
| 11 | WR38X10237 | Recess Trim Bk |
|
- | |||||
| 12 | WR01A00225 | Stop Door Bk (Replaces: WR02X10814) |
|
$ 12.40 | |||||
| 14 | WR24X10072 | Gasket Door Fz Bk |
|
- | |||||
| 15 | WR02X10780 | Cam Closure Fz Bk |
|
- | |||||
| 23 | WR01L00038 | Module Shelf Fz Fixed (Replaces: WR71X10254) |
|
$ 26.67 | |||||
| 31 | WR17X10895 | Grille Recess Bk |
|
- | |||||
| 36 | WR01F01784 | Solenoid Asm (Replaces: WR62X10020) |
|
$ 80.09 | |||||
| 45 | WR2X8818 | Retainer Recess Door |
|
- | |||||
| 56 | WG03A03944 | Light Dispenser (Replaces: WR02X10675) |
|
Immediately | $ 60.67 | ||||
| 57 | WR02X10670 | Reflector Light |
|
- | |||||
| 58 | WR17X11077 | Housing Shield Disp Bk |
|
- | |||||
| 61 | WR2X9561 | Socket Lamp E12 |
|
- | |||||
| 62 | WR01L01914 | Door Recess Asm (Replaces: WR17X3093) |
|
$ 58.69 | |||||
| 63 | WG03A00047 | Spring Recess Door (Replaces: WR02X10585) |
|
Immediately | $ 3.57 | ||||
| 67 | WR01L00935 | Crank Door Recess (Replaces: WR17X10706) |
|
$ 11.44 | |||||
| 69 | WR17X11148 | Funnel Ice Disp Bk |
|
$ 96.27 | |||||
| 72 | WR01F03637 | Switch (Replaces: WR23X10224) |
|
Immediately | $ 15.72 | ||||
| 74 | WR02X10584 | Spring Funnel |
|
- | |||||
| 80 | WG03A00026 | Union Connector (Replaces: WR02X10471) |
|
$ 15.72 | |||||
| 90 | WG03F00046 | Board Asm Disp (Replaces: WR55X10031) |
|
$ 194.65 | |||||
| 91 | WR55X10076 | Control Disp Asm Bk |
|
- | |||||
| 121 | WR12X10429 | Trim Handle Lower Bk |
|
- | |||||
| 122 | WR71X10256 | Module Support Fz |
|
- | |||||
| 123 | WR71X10255 | Module Support Fz |
|
- | |||||
| 124 | WR21X10024 | Basket Wire Tiltout Fz |
|
- | |||||
| 125 | WR21X10025 | Basket Wire Tiltout Fz |
|
- | |||||
| 152 | WR01A01241 | Scr 8-18 Ab Fltr 5/8 S (Replaces: WR01X10038) |
|
$ 3.57 | |||||
| 154 | WR01X10213 | Scr 8-18 Ab Rnt20 5/8 S |
|
- | |||||
| 155 | WR02X10643 | Bracket Handle Lock |
|
- | |||||
| 156 | WR13X10130 | Hinge Tiltout Fz Lh |
|
- | |||||
| 157 | WR13X10131 | Hinge Tiltout Fz Rh |
|
- | |||||
| 158 | WR02X10646 | Tail Mtng Hndl Retnr |
|
- | |||||
| 900 | WR78X10433 | Door Foam Asm Fz Bk |
|
- | |||||
| 903 | WR01X10234 | Thimble Door Btm Fz Bk |
|
- | |||||
| 904 | WR1X2134 | Scr 10-32 |
|
- | |||||
| 911 | WR01X10233 | Thimble Door Top Bk |
|
- |
