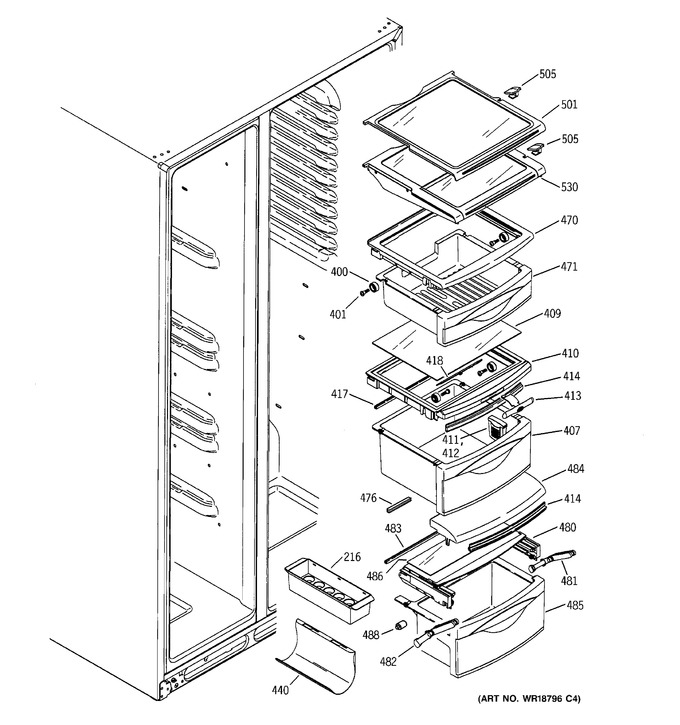

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
216	WR32X10150		Bucket Egg		Appelez-nous	-
400	WR01F01728		Wheel Pan Cover   (Replaces: WR01X10209)				$ 3.57
401	WR01X10214		Scr 10-16 Pl Pnp 5/8 Szn		Appelez-nous	-
407	WR32X10195		Pan Asm		Appelez-nous	-
409	WR01L01061		Cover Pan Glass   (Replaces: WR32X10200)			Immediately	$ 13.49
410	WR01L11327		Cover Middle Pan   (Replaces: WR32X10197)				$ 68.36
411	GFSFR02		Freshsaver Filter 2pk		Appelez-nous	-
412	WR02X10684		Holder Freshsaver		Appelez-nous	-
413	WR02X10650		Humidity Control		Appelez-nous	-
414	WR01L04170		Gasket Pan Crv Front   (Replaces: WR14X10059)				$ 7.15
417	WR14X10058		Gasket Pan Crv Rear		Appelez-nous	-
418	WR02X10633		Slide Middle Pan Cover		Appelez-nous	-
440	WR17X10793		Wine Rack		Appelez-nous	-
470	WR32X10196		Cover Top Pan Asm		Appelez-nous	-
471	WR32X10147		Pan Asm Top		Appelez-nous	-
476	WR14X10102		Gasket Pan Crv Rear		Appelez-nous	-
480	WR32X10198		Cover Top Meat		Appelez-nous	-
481	WR02X10655		Linkage Meat Pan Rh		Appelez-nous	-
482	WR02X10654		Linkage Meat Pan Lh		Appelez-nous	-
483	WR14X10060		Gasket Cover Rear		Appelez-nous	-
484	WR01L00734		Cover Front Meat   (Replaces: WR32X10146)				$ 64.85
485	WR32X10194		Pan Asm Meat		Appelez-nous	-
486	WR32X10199		Cover Pan Glass		Appelez-nous	-
488	WR02X10815		Boss Spacer		Appelez-nous	-
501	WR01L04325		Shelf Slideout Asm   (Replaces: WR71X10296)				$ 83.16
505	WR01A00596		Stop Shelf   (Replaces: WR02X10662)				$ 25.73
530	WR71X10294		Shelf Tuckaway Asm		Appelez-nous	-
