SELECT A DIAGRAM

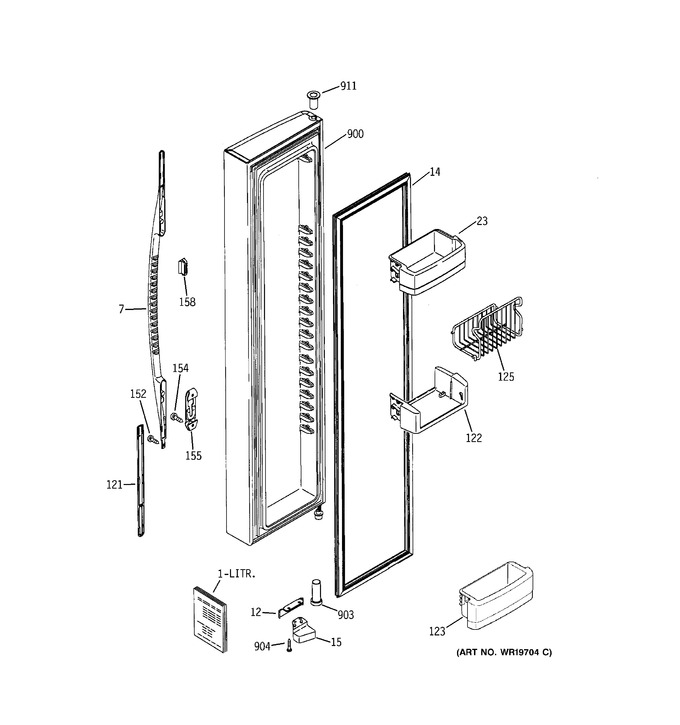

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60358		Pm Guide Owners		Appelez-nous	-
1	31-46221		Pm Mini Wiring Manual		Appelez-nous	-
7	WR12X10430		Handle Sxs Asm Bk		Appelez-nous	-
12	WR01A01018		Stop Door Bk   (Replaces: WR02X10782)				$ 35.73
14	WR01L08732		Gasket Door Fz Bk   (Replaces: WR24X10158)				$ 58.96
15	WR02X10780		Cam Closure Fz Bk		Appelez-nous	-
23	WR71X10355		Module Shelf Fz Fixed		Appelez-nous	-
121	WR12X10429		Trim Handle Lower Bk		Appelez-nous	-
122	WR71X10359		Module Support Fz		Appelez-nous	-
123	WR71X10577		Module Shelf Fz Fixed		Appelez-nous	-
125	WR21X10110		Basket Wire Tiltout Fz		Appelez-nous	-
152	WR01X10467		Scr 8-18 Ab Trp 3/4 S Zn		Appelez-nous	-
154	WR01X10213		Scr 8-18 Ab Rnt20 5/8 S		Appelez-nous	-
155	WR02X10643		Bracket Handle Lock		Appelez-nous	-
158	WR02X10646		Tail Mtng Hndl Retnr		Appelez-nous	-
900	WR78X10417		Door Foam Asm Fz Bk		Appelez-nous	-
903	WR01X10234		Thimble Door Btm Fz Bk		Appelez-nous	-
904	WR01X10375		Screw Door Stop T20		Appelez-nous	-
911	WR01X10233		Thimble Door Top Bk		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
