SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board

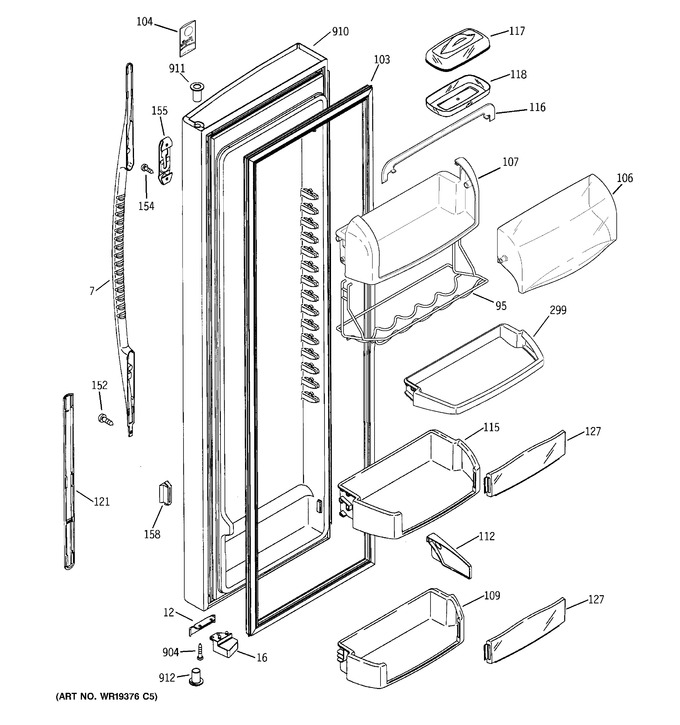

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR12X10430		Handle Sxs Asm Bk		Appelez-nous	-
12	WR01A01018		Stop Door Bk   (Replaces: WR02X10782)				$ 35.73
16	WR01F01557		Cam Closure Ff Bk   (Replaces: WR02X10779)				$ 32.88
95	WR17X11481		Wine & Beverage Rack		Appelez-nous	-
103	WR24X10157		Gasket Door Ff Bk		Appelez-nous	-
104	WR04X10110		Nameplate Profile Bk		Appelez-nous	-
106	WR01L01269		Door Dairy Clear   (Replaces: WR22X10042)				$ 54.95
107	WR22X10041		Compartment Dairy		Appelez-nous	-
109	WR01L02880		Module Shelf Ff   (Replaces: WR71X10605)				$ 34.93
112	WR01L04421		Snugger Module   (Replaces: WR02X10582)			Immediately	$ 28.58
115	WR01L00078		Module Shelf Ff   (Replaces: WR71X10607)			Immediately	$ 59.15
116	WR22X10043		Trim Dairy Compartment		Appelez-nous	-
117	WR22X10019		Lid Dish Butter		Appelez-nous	-
118	WR22X10018		Dish Butter		Appelez-nous	-
121	WR12X10429		Trim Handle Lower Bk		Appelez-nous	-
127	WR01L00085		Module Shelf Insert   (Replaces: WR71X10380)			Immediately	$ 10.63
152	WR01X10467		Scr 8-18 Ab Trp 3/4 S Zn		Appelez-nous	-
154	WR01X10213		Scr 8-18 Ab Rnt20 5/8 S		Appelez-nous	-
155	WR02X10643		Bracket Handle Lock		Appelez-nous	-
158	WR02X10646		Tail Mtng Hndl Retnr		Appelez-nous	-
299	WR71X10360		Retainer Bottle		Appelez-nous	-
904	WR01X10375		Screw Door Stop T20		Appelez-nous	-
910	WR78X10402		Door Foam Asm Ff Bk		Appelez-nous	-
911	WR01X10233		Thimble Door Top Bk		Appelez-nous	-
912	WR01X10232		Thimble Door Btm Bk		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
