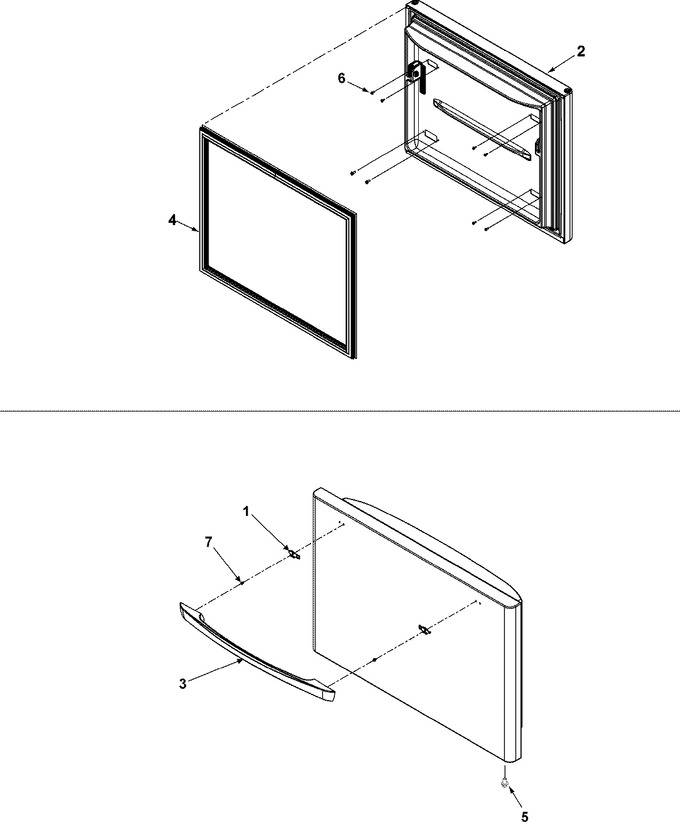

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67007126		Clip Handle Mount   (Replaces: 67006483)	10			$ 7.88
2	67006807		Door Assy., Frz. Foam (wht)	10	Appelez-nous	-
3	67006194		Handle, Face Mount Amana Wht	10	Appelez-nous	-
4	67003558		Gasket, Fz Door (wht)	10	Appelez-nous	-
5	WP67003638		Closure, Door (wht)   (Replaces: 67003638)	10		Immediately	$ 7.76
6	12991101		Screw, Sm Hex Head   (Replaces: 67006408)	10			$ 12.83
7	WP12992902		Screw   (Replaces: 67006282)	10			$ 11.07

    View Diagram in Separate Window       Print Part List
