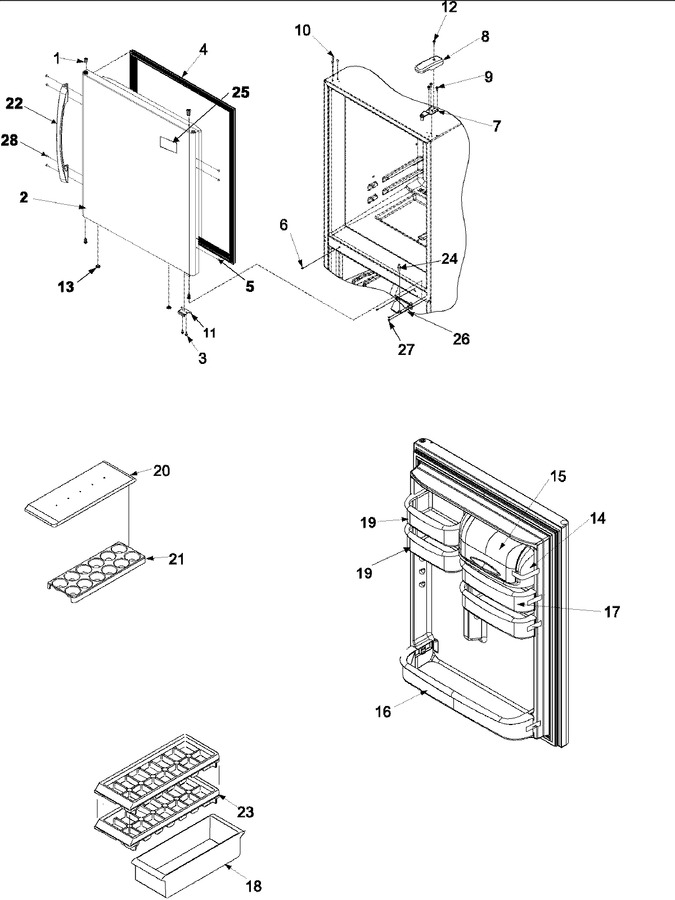

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67004977 | Bushing, Door (wht) (Replaces: 67004977) | 10 |
|
$ 8.20 | ||||
| 2 | 67004415 | Door Assy., Ref. Foam (wht) | 10 |
|
- | ||||
| 3 | WP98165 | Screw (Replaces: 67006287) | 10 |
|
$ 8.57 | ||||
| 4 | W10443317 | Gasket, Ref Door (wht) (Replaces: 67003556) | 10 |
|
$ 366.79 | ||||
| 5 | WP67001130 | Plug, Handle Hole (wht) (Replaces: 12246601) | 10 |
|
Immediately | $ 5.98 | |||
| 6 | WP489349 | Screw, Tf (Replaces: M0239730) | 10 |
|
Immediately | $ 8.43 | |||
| 7 | W11689473 | Hinge, Center (wht) (Replaces: 67006960) | 10 |
|
$ 69.79 | ||||
| 8 | 67001014 | Cover, Top Hinge (wht) | 10 |
|
$ 22.34 | ||||
| 9 | WP489349 | Screw (Replaces: 67006303) | 10 |
|
Immediately | $ 8.43 | |||
| 10 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) | 10 |
|
Immediately | $ 5.98 | |||
| 11 | 12968202W | Stop, Door (wht) (Replaces: 67003779) | 10 |
|
$ 69.29 | ||||
| 12 | WP8281196 | Screw (Replaces: 67006521) | 10 |
|
Immediately | $ 7.55 | |||
| 13 | 10712401 | Plug, Vent (wht) | 10 |
|
$ 7.79 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 88.01 | |||
| 15 | WP12744905 | Dairy Assy (Replaces: 67003819) | 10 |
|
$ 113.99 | ||||
| 16 | 67002477 | Retainer, Door | 10 |
|
- | ||||
| 17 | WP67001021 | Bucket, Med Ref Door (Replaces: 67001021) | 10 |
|
$ 84.95 | ||||
| 18 | 10423131 | Bin, Utility | 10 |
|
$ 31.13 | ||||
| 19 | 67003765 | Bucket, Lrg Ref Door | 10 |
|
- | ||||
| 20 | 10436404 | Lid, Utility | 10 |
|
$ 60.85 | ||||
| 21 | 10436506 | Tray, Egg | 10 |
|
$ 8.28 | ||||
| 22 | 67006721 | Handle, Door (wht) | 10 |
|
- | ||||
| 23 | WP841180A | Tray, Ice (Replaces: 67001205) | 10 |
|
Immediately | $ 47.84 | |||
| 24 | WP67006642 | Pin, Center Hinge (Replaces: 67006642) | 10 |
|
$ 8.78 | ||||
| 25 | Y12528501 | Nameplate (amana Plus) | 10 |
|
Immediately | $ 62.74 | |||
| 26 | W11689473 | Hinge, Center (wht) (Replaces: 67001168) | 10 |
|
$ 69.79 | ||||
| 26 | WP12607104ED | Hinge, Center (blk) (Replaces: 67001167) | 10 |
|
$ 167.35 | ||||
| 27 | W11573362 | Screw (Replaces: 67006380) | 10 |
|
$ 14.72 | ||||
| 28 | 67006668 | Screw, Hi Torque | 10 |
|
$ 12.83 |
