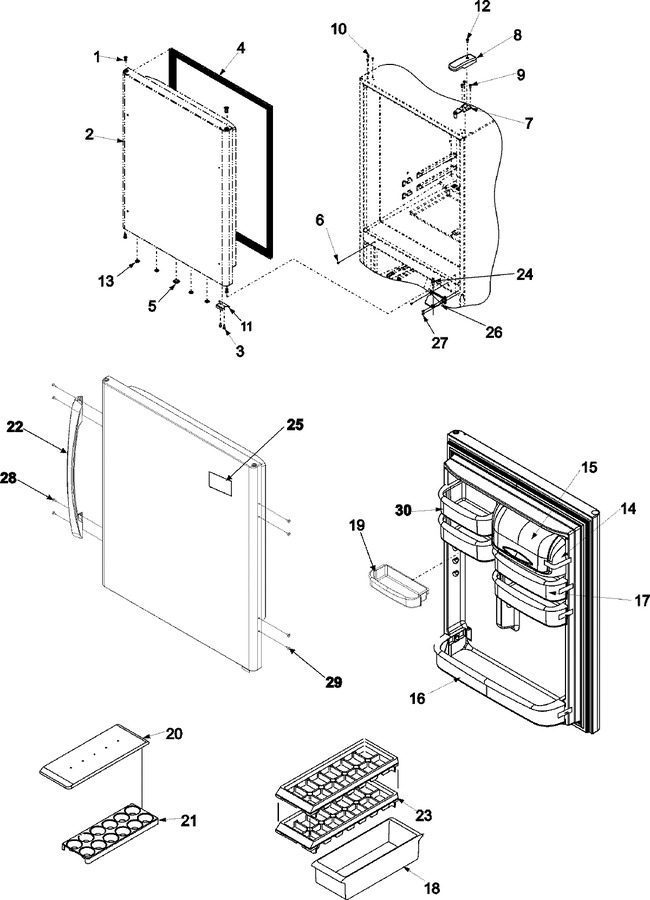

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004978 | Bushing, Door (blk) (Replaces: 67003369) | 10 |
|
$ 21.05 | ||||
| 2 | 67004506 | Door Assy., Ref. Foam (stnls) | 10 |
|
- | ||||
| 3 | WPW10348409 | Screw, Mounting (Replaces: M0211533) | 10 |
|
Immediately | $ 7.76 | |||
| 4 | W10849442 | Gasket, Ref Door (blk) (Replaces: 67003557) | 10 |
|
$ 344.33 | ||||
| 5 | A3080001 | Plug, Button (blk) | 10 |
|
- | ||||
| 6 | WP489349 | Screw, Tf (Replaces: M0239730) | 10 |
|
Immediately | $ 7.88 | |||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 44.89 | |||
| 8 | 67001012 | Cover, Top Hinge (blk) | 10 |
|
$ 47.34 | ||||
| 9 | R9800670 | Screw, Tf (Replaces: M0238731) | 10 |
|
$ 9.38 | ||||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) | 10 |
|
Immediately | $ 7.76 | |||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 67003780) | 10 |
|
Immediately | $ 14.05 | |||
| 12 | WP8281196 | Screw-mach (Replaces: M0202327) | 10 |
|
Immediately | $ 7.19 | |||
| 13 | 67004838 | Plug, Button (blk) (Replaces: 67001016) | 10 |
|
$ 10.68 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 83.82 | |||
| 15 | WP12744905 | Dairy Assy (Replaces: 67003819) | 10 |
|
$ 108.56 | ||||
| 16 | 67002477 | Retainer, Door | 10 |
|
- | ||||
| 17 | WPW10324005 | Bucket, Med Ref Door (Replaces: 67003766) | 10 |
|
$ 74.05 | ||||
| 18 | 10423131 | Bin, Utility | 10 |
|
$ 31.13 | ||||
| 19 | 67004634 | Bucket, Ref Dr Short |
|
- | |||||
| 20 | 10436404 | Lid, Utility | 10 |
|
$ 60.85 | ||||
| 21 | 10436506 | Tray, Egg | 10 |
|
$ 8.28 | ||||
| 22 | 67003876 | Card, Handle Release | 10 |
|
$ 6.43 | ||||
| 22 | 67004450 | Handle Assy Ref Dr (stnls)x | 10 |
|
- | ||||
| 23 | WP841180A | Tray, Ice (Replaces: 67001205) | 10 |
|
Immediately | $ 45.56 | |||
| 24 | WP67006642 | Pin, Center Hinge (Replaces: 67002734) | 10 |
|
$ 7.93 | ||||
| 25 | Y12528501 | Nameplate (amana Plus) | 10 |
|
Immediately | $ 59.75 | |||
| 26 | WP12607104ED | Hinge, Center (blk) (Replaces: 67001167) | 10 |
|
$ 152.73 | ||||
| 26 | W11689473 | Hinge, Center (wht) (Replaces: 67001168) | 10 |
|
$ 66.47 | ||||
| 27 | W11573362 | Screw, T. F. (Replaces: M0226233) | 10 |
|
$ 14.02 | ||||
| 29 | WP12246610 | Plug, Handle Hole (stnls) (Replaces: 12246606) | 10 |
|
Immediately | $ 7.76 | |||
| 30 | 67003765 | Bucket, Lrg Ref Door | 10 |
|
- |
