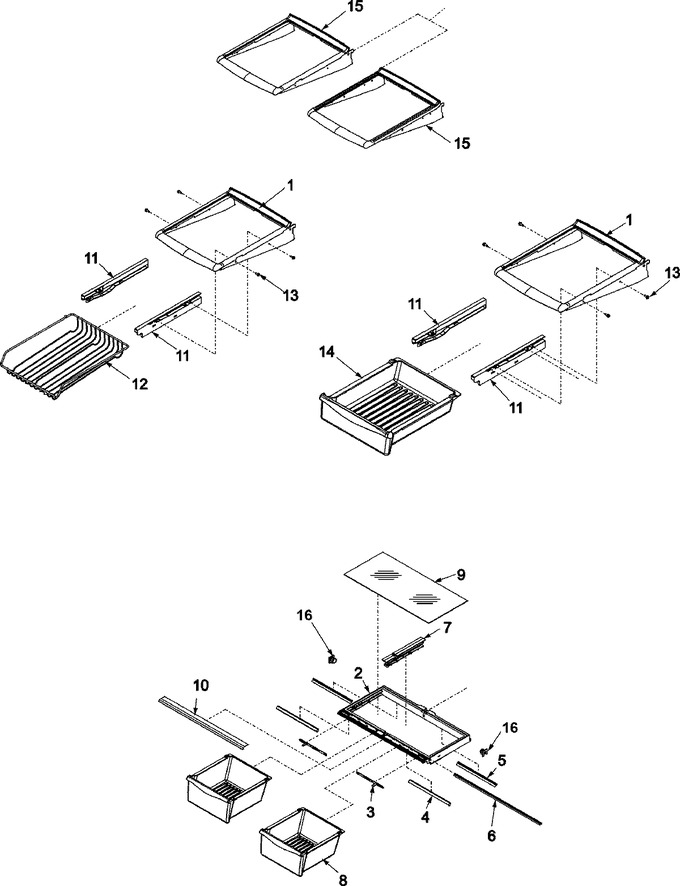

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004680		Shelf, Sta	11	Appelez-nous	-
1	67003703		Shelf, Sta 33	10	Appelez-nous	-
2	WP67003854		Frame, Crisper   (Replaces: 67003854)	10		Immediately	$ 227.55
3	WP67005864		Slide, Humidity Control   (Replaces: Y67001287)			Immediately	$ 8.20
5	WP67002513		Seal, Rear Crisper   (Replaces: 67002513)	10			$ 7.98
6	WP12227303WD		Brace, Crisper E-ct   (Replaces: 67001059)	10			$ 111.25
7	WPW10326469		Rail, Center Crisper   (Replaces: 67004514)	10		Immediately	$ 33.37
8	WP67004515		Pan, Crisper   (Replaces: 67004515)	10		Immediately	$ 176.72
9	WP67006704		Glass, Crisper   (Replaces: 67003852)	10			$ 212.77
10	67004636		Extr, Crisper Front		Appelez-nous	-
11	WP67001054		Glide (lt)   (Replaces: 67001054)	10		Immediately	$ 8.82
12	67004585		Rack, Can	10	Appelez-nous	-
13	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.72
14	67004512		Pan, Deli	10			$ 61.71
15	67004637		Shelf, Glide Out				$ 113.49
16	WP12603701		Support, Crisper Frame   (Replaces: 12603701)				$ 10.83
11A	WP67001053		Glide (rt)   (Replaces: 67001053)	10		Immediately	$ 9.24
