SELECT A DIAGRAM

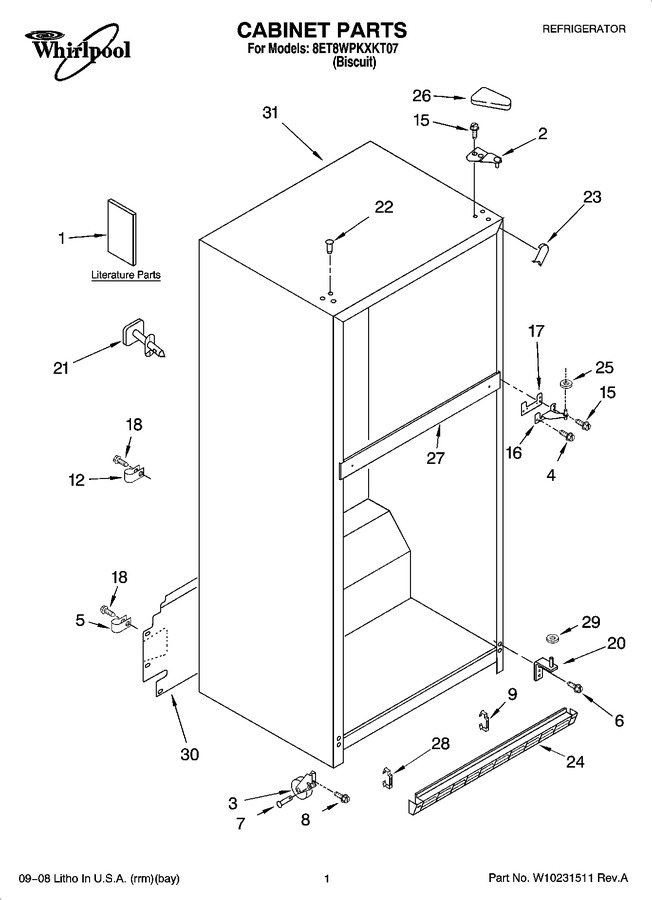

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2302299 | Use & Care Guide (chinese) |
|
- | |||||
| 1 | W10142142 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2302300 | Use & Care Guide (english) |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual, Ref./fzr. |
|
$ 30.30 | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2189410) |
|
Immediately | $ 99.45 | ||||
| 3 | WP2166108 | Roller-front (2) (Replaces: 2166108) |
|
Immediately | $ 34.76 | ||||
| 4 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 5 | WP488366 | Clamp, Tube (water Supply Line) (Replaces: 489385) |
|
$ 11.18 | |||||
| 6 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.47 | |||||
| 7 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 18.21 | ||||
| 8 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 7.19 | |||||
| 9 | 2254385 | Clip-grille |
|
$ 84.64 | |||||
| 12 | 489348 | Clamp |
|
- | |||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 16 | WP2254618 | Hinge, Center (Replaces: 2254618) |
|
Immediately | $ 87.64 | ||||
| 17 | WP2183852 | Shim, Hinge Center (Replaces: 2183852) |
|
$ 10.65 | |||||
| 18 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 7.83 | ||||
| 20 | WP2254473 | Hinge Butt, Btm (Replaces: 2254473) |
|
$ 8.47 | |||||
| 22 | 2200924 | Hole Plug (6) |
|
- | |||||
| 23 | W10283958 | Corner Filler (2) (Replaces: 2200926) |
|
$ 24.41 | |||||
| 24 | 2254311 | Grille |
|
- | |||||
| 25 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.88 | ||||
| 26 | 2213364 | Cover, Hinge |
|
$ 17.80 | |||||
| 28 | 2189356 | Clip-grille |
|
$ 5.70 | |||||
| 29 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 10.88 | ||||
| 30 | 2254582 | Cover, Unit |
|
$ 128.31 |
