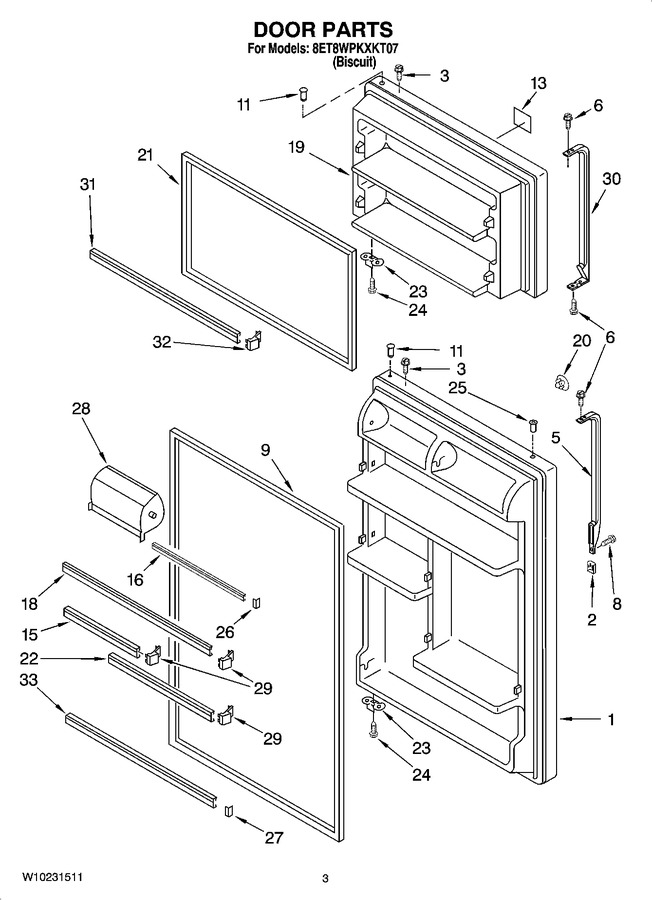

SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205285		Refrigerator Door (includes 9 & 11)		Appelez-nous	-
2	2193353T		End Cap		Appelez-nous	-
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
5	2213112T		Handle Center		Appelez-nous	-
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
9	2159057		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202874)			Immediately	$ 164.66
11	WP2314293		Thimble   (Replaces: 2314293)				$ 7.19
13	2212596		Nameplate		Appelez-nous	-
15	2195942		Trim, Door				$ 56.34
16	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 118.40
18	WPW10421484		Trim, Door   (Replaces: 2195949)				$ 129.76
19	2205279		Freezer Door (incl.11 & 21)		Appelez-nous	-
20	WP2200936		Hole Plug   (Replaces: 2200936)				$ 7.59
21	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 164.58
22	WP2195943		Trim, Door Shelf   (Replaces: 2195943)				$ 87.41
23	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
24	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
25	WP2212649		Hole Plug   (Replaces: 2212649)				$ 7.61
26	WP2156007		Plug-trim (4)   (Replaces: 2156007)			Immediately	$ 7.65
27	WP2156006		Plug-trim (4)   (Replaces: 2156006)			Immediately	$ 12.18
28	WP2218113		Compartment Door   (Replaces: 2218113)			Immediately	$ 50.33
29	WP2195915		Plug-trim   (Replaces: 2195915)				$ 13.07
30	2213111T		Handle, F.c.		Appelez-nous	-
31	2195946		Trim-door (2)				$ 46.58
32	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 12.55
33	2195941		Trim, Door				$ 47.96

    View Diagram in Separate Window       Print Part List
