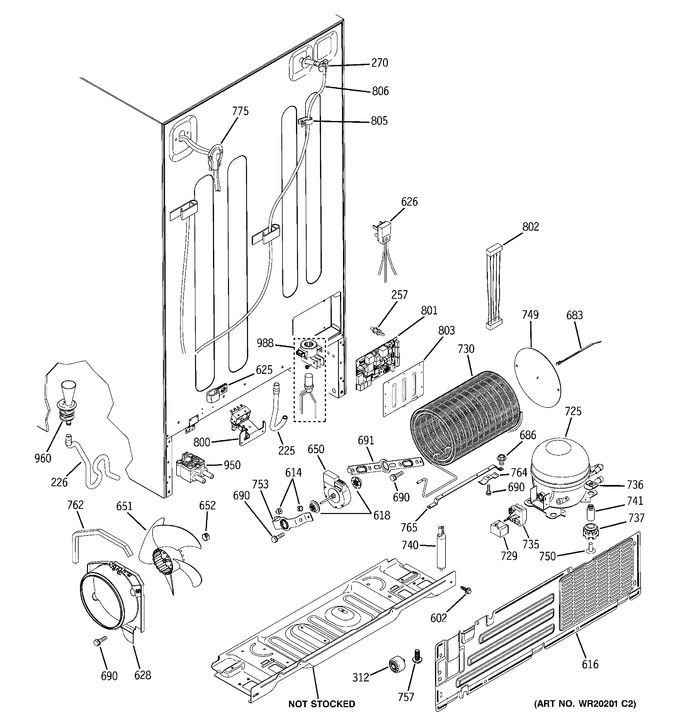

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 225 | WR01F01884 | Tube Drain (Replaces: WR02X11426) |
|
Immediately | $ 32.88 | ||||
| 226 | WR02X11848 | Tube Drain |
|
- | |||||
| 257 | WR02X10663 | Stand Off |
|
- | |||||
| 270 | WR17X11506 | Grommet And Tube Asm |
|
- | |||||
| 312 | WR02X11998 | Mobility Wheel S Kit Asm |
|
- | |||||
| 602 | WR01X10617 | Scr 1/4-14 Ab Ihw 3/4 S |
|
- | |||||
| 614 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 5.72 | ||||
| 616 | WR01L00714 | Cover Access (Replaces: WR82X10109) |
|
$ 119.45 | |||||
| 618 | WR01A00579 | Grommet Evap Fan (Replaces: WR02X11331) |
|
$ 3.57 | |||||
| 625 | WR1X5278 | Clamp Cable |
|
- | |||||
| 626 | WR23X108 | Power Cord |
|
- | |||||
| 628 | WR17X11252 | Shroud Condenser |
|
- | |||||
| 650 | WG03F00433 | Motor Dc Cond Fan (Replaces: WR60X10209) |
|
Immediately | $ 95.65 | ||||
| 651 | WR01F02003 | Blade Conf Fan Asm (Replaces: WR60X10206) |
|
$ 10.36 | |||||
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.57 | |||||
| 683 | WR02X11027 | Wire Tie |
|
- | |||||
| 686 | WR01X10252 | Scr 10-32 Tt Hxw 5/16 S |
|
- | |||||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 691 | WR02X11742 | Bracket Cond Fan |
|
- | |||||
| 725 | WG03F00133 | Comp. Repl. Kit (Replaces: WR87X10097) |
|
Immediately | $ 941.24 | ||||
| 729 | WR01F02043 | Capacitor (Replaces: WR62X79) |
|
Immediately | $ 15.45 | ||||
| 730 | WR01F02892 | Condenser Asm (Replaces: WR84X10022) |
|
$ 403.54 | |||||
| 735 | WR08X10074 | Overload Ptcr Combo |
|
- | |||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 737 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 740 | WR86X10030 | Dryer Bifurcated Hx9 |
|
- | |||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 749 | WR17X11039 | Baffle Cond Air |
|
- | |||||
| 750 | WR1X1786 | Screw 10-32 Tr 1/2 |
|
- | |||||
| 753 | WR02X10521 | Brkt Cond Fan (mtg) |
|
- | |||||
| 757 | WR01X10622 | Scr 10-32 B Ihxw 1/2 |
|
- | |||||
| 762 | WR14X10053 | Foam Strip Se Adh |
|
- | |||||
| 764 | WR2X9000 | Clip, Cond Mnt |
|
- | |||||
| 765 | WR17X10763 | Bracket Condenser Bar |
|
- | |||||
| 775 | WR17X10796 | Cover Water Line |
|
- | |||||
| 800 | WR57X10040 | Water Valve |
|
$ 71.10 | |||||
| 801 | WR01A01131 | Kit Main Board Service (Replaces: WR49X10152) |
|
$ 187.70 | |||||
| 802 | WR23X10442 | Harness Board Indiv |
|
- | |||||
| 803 | WR02X12025 | Main Board Enclosure Asm |
|
- | |||||
| 805 | WR02X12265 | Clamp Tube |
|
- | |||||
| 806 | WR01F01881 | Tube Plastic (Replaces: WR17X11625) |
|
$ 14.29 | |||||
| 950 | WG03F07532 | Flow Meter (Replaces: WR57X10067) |
|
$ 227.90 | |||||
| 960 | WR17X12150 | Grommet Drain Tube Asm |
|
- | |||||
| 988 | WR01F01909 | Valve Asm (Replaces: WR57X10053) |
|
$ 99.49 |
