Diagram # Part Number Description Series Availability Ships Price Add to Cart
10 WR01X10065 Scr 8-18 Ba Por 5/8 Ss Appelez-nous -
177 WR01X10613 Scr 8-18 Ab Pnt20 7/16 S Appelez-nous -
178 WR01X10614 Scr 8-18 Ab Pnt20 13/16 Appelez-nous -
179 WR12X10624 Handle Appelez-nous -
180 WR71X10704 Shelf Fixed Fz Appelez-nous -
181 WR38X10214 Trim Shelf Fz Appelez-nous -
182 WR71X10502 Shelf Adjustable Fz Appelez-nous -
184 WR21X10155 Basket Appelez-nous -
185 WR12X10625 Handle Appelez-nous -
186 WR21X10035 Basket Wire Fz Appelez-nous -
189 WR17X10913 Spacer Appelez-nous -
190 WR17X10916 Support Slide Basket Appelez-nous -
191 WR17X10917 Support Slide Basket Appelez-nous -
194 WR02X10810 Cover L.h. Appelez-nous -
195 WR02X10811 Cover R.h. Appelez-nous -
196 WR72X10197 Slide & Bracket Asm Appelez-nous -
197 WR72X10198 Slide & Bracket Asm Appelez-nous -
198 WR72X10199 Slide Liner Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

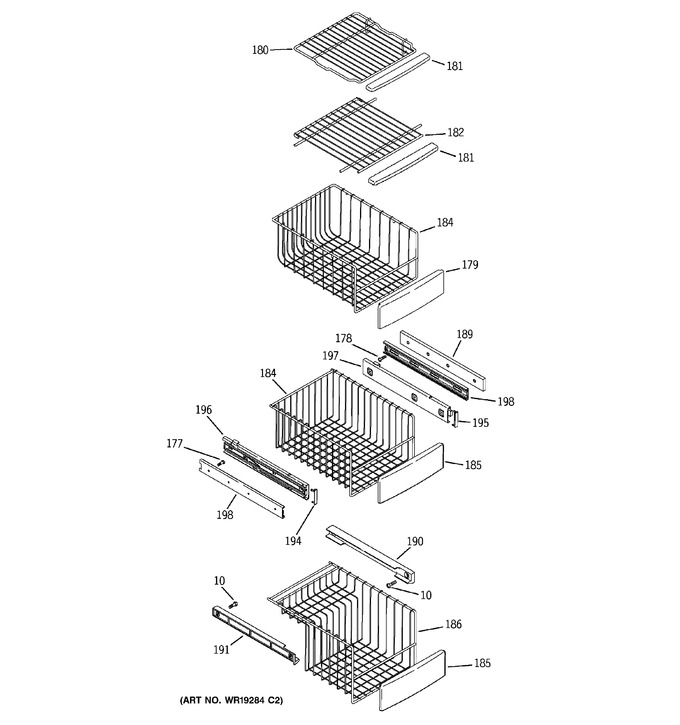

Diagram for PSS26PSTASS
