SELECT A DIAGRAM

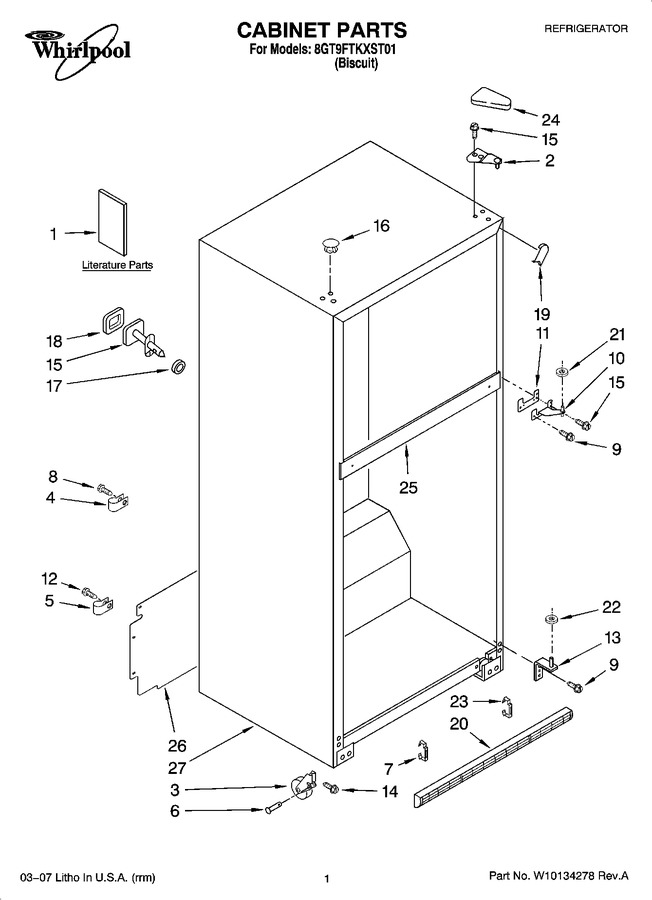

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2314273		Service & Wiring Sheet		Appelez-nous	-
1	677969		Use & Care Guide Following May Be Purchased Do-it-yourself Repair Manuals (do-it-yourself Manual, Ref./fzr.)				$ 30.30
1	2302299		Use & Care Guide (chinese)		Appelez-nous	-
1	2302300		Use & Care Guide (english)		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 99.45
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 34.76
4	489348		Tube Clamp-nylon		Appelez-nous	-
5	WP488366		Clamp, Tube (water Supply Line)   (Replaces: 489385)				$ 11.92
6	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 19.12
7	2189356		Clip-grille				$ 5.70
8	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
9	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
10	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 92.02
11	WP2183854		Shim, Hinge Center   (Replaces: 2183854)				$ 11.43
12	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 8.38
13	WP2254473		Hinge Butt   (Replaces: 2254473)				$ 9.28
14	WP3400504		Screw   (Replaces: 3400504)				$ 7.55
16	2200924		Hole Plug (6) (biscuit)		Appelez-nous	-
19	W10283958		Corner Filler (2) (biscuit)   (Replaces: 2200926)				$ 25.63
20	2254311		Grille (biscuit)		Appelez-nous	-
21	WP489467		Washer   (Replaces: 489341)			Immediately	$ 11.42
22	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.88
23	2254385		Clip-grille				$ 88.87
24	2213364		Cover-hinge (biscuit)				$ 18.69
26	2254582		Cover, Unit				$ 134.73

    View Diagram in Separate Window       Print Part List
