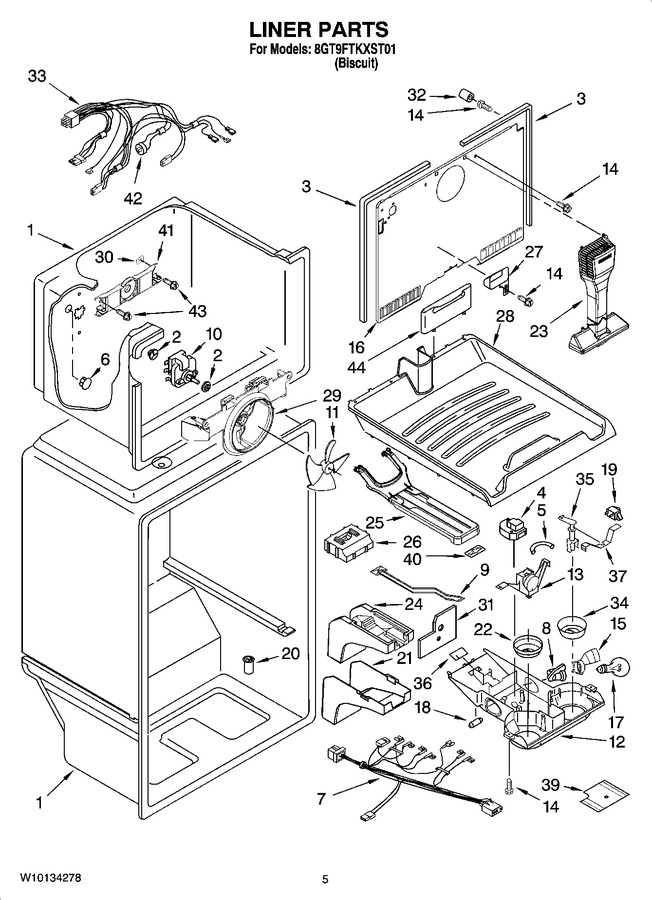

03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP2264462		Grommet (2)   (Replaces: 2197380)			Immediately	$ 43.97
3	WP2254360		Gasket, Evaporator Cover   (Replaces: 2254359)				$ 26.78
4	2212769		Defrost Timer		Appelez-nous	-
5	2212485		Thermostat Tube Barrier				$ 5.92
6	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
7	2310174		Wire Assy. Control Box		Appelez-nous	-
8	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 110.16
9	2179858		Damper, Air		Appelez-nous	-
10	WPW10189703		Fan Motor   (Replaces: 2219660)			Immediately	$ 70.17
11	WP2163777		Fan Blade   (Replaces: 2200509)			Immediately	$ 66.15
12	2302167		Control Box		Appelez-nous	-
13	2210489		Thermostat Assy. (includes Items 5, 18 & 36)				$ 117.12
14	WP489478		Screw   (Replaces: 489478)				$ 7.75
15	WP2175210		Shroud, Light (2)   (Replaces: 2175210)				$ 82.61
16	2320192		Cover, Evaporator		Appelez-nous	-
17	4396822		Light Bulb (2)   (Replaces: 850166)			Immediately	$ 12.93
18	2200831		Weight, Thermal		Appelez-nous	-
19	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 37.23
20	WP2210509		Valve-tube, Body   (Replaces: 2171931)				$ 94.43
21	2176281		Cover, Air Diffuser				$ 41.64
22	W10829461		Knob, Thermostat   (Replaces: 2200863)				$ 30.39
23	WP2254354		Air Tower   (Replaces: 2254354)				$ 103.09
24	WP2189452		Air Diffuser   (Replaces: 2189452)			Immediately	$ 124.79
25	2225473		Retainer-frzr.flr. Bottom		Appelez-nous	-
26	2179877		Air Diffuser, Top		Appelez-nous	-
27	2205003		Cover, Hole		Appelez-nous	-
28	2225477		Pull Out Freezer Floor Assy. 18`		Appelez-nous	-
29	2254453		Bracket Fan Motor				$ 45.87
30	2320183		Retainer-screw		Appelez-nous	-
31	2204639		Shield, Heat		Appelez-nous	-
32	WP487996		Cap   (Replaces: 487996)				$ 8.26
33	2310097		Wire Assembly Freezer Compt. (includes Item 42)		Appelez-nous	-
34	2302536		Knob, Damper				$ 27.08
35	2179859		Post, Damper		Appelez-nous	-
36	WP2205079		Seal, Rearthermostat   (Replaces: 2205079)				$ 9.53
37	2163810		Bracket, Damper Knob				$ 6.01
39	2201082		Shield, Heat		Appelez-nous	-
40	2176341		Clip, Defrost		Appelez-nous	-
41	2254454		Bracket, Evap. Fan, Rear			Immediately	$ 71.85
42	WP2321800		Defrost, Bi-metal Timer   (Replaces: 2319915)			Immediately	$ 120.87
43	WP488163		Screw (2)   (Replaces: 488208)				$ 7.54
44	2198768		Rear Fence Pull-out Freezer Floor				$ 35.55
