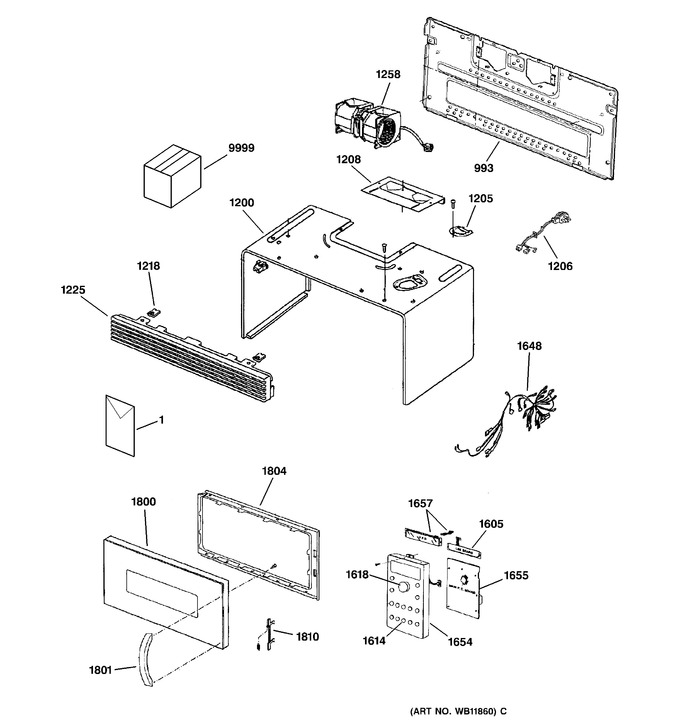

1 - Door, Controls, Grill & Case
2 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 993 | WB56X10135 | Mounting Plate |
|
- | |||||
| 1200 | WB56X10140 | Outer Case Cc |
|
- | |||||
| 1205 | WB18X10094 | Power Cord Cover |
|
- | |||||
| 1206 | WB18X10096 | Power Cord Assy |
|
- | |||||
| 1218 | WB02X10625 | Grille Clips |
|
- | |||||
| 1225 | WB07X10270 | Grille Assy Cc |
|
- | |||||
| 1258 | WB26X10064 | Vent Motor |
|
- | |||||
| 1605 | WB27X10328 | Led Board |
|
- | |||||
| 1614 | WB03X10080 | Buttons Cc |
|
- | |||||
| 1618 | WB03X10081 | Knob Cc |
|
- | |||||
| 1648 | WB18X10095 | Wiring Harness |
|
- | |||||
| 1654 | WB07X10271 | Control Panel Assy, Cc |
|
- | |||||
| 1655 | WB27X10333 | Smart Board, Main |
|
- | |||||
| 1657 | WB27X10336 | Vacuum Flor. Display |
|
- | |||||
| 1800 | WB55X10301 | Door Assy, Cc |
|
- | |||||
| 1801 | WB15X10044 | Handle, Door Cc |
|
- | |||||
| 1804 | WB55X10297 | Choke Cover |
|
- | |||||
| 1810 | WB10X10021 | Latch/spring Assy |
|
- | |||||
| 9999 | 49-40070 | Cookbook |
|
- | |||||
| 9999 | 28-X129 | Use & Care Video |
|
- | |||||
| 9999 | 31-20919 | Mini-manual |
|
- | |||||
| 9999 | 49-40067 | Use & Care Manual |
|
- | |||||
| 9999 | 49-40068 | Installation Instruction |
|
- | |||||
| 9999 | 49-40069 | Top Cabinet Template |
|
- | |||||
| 9999 | WB64X10003 | Installation Kit Assy |
|
- |
