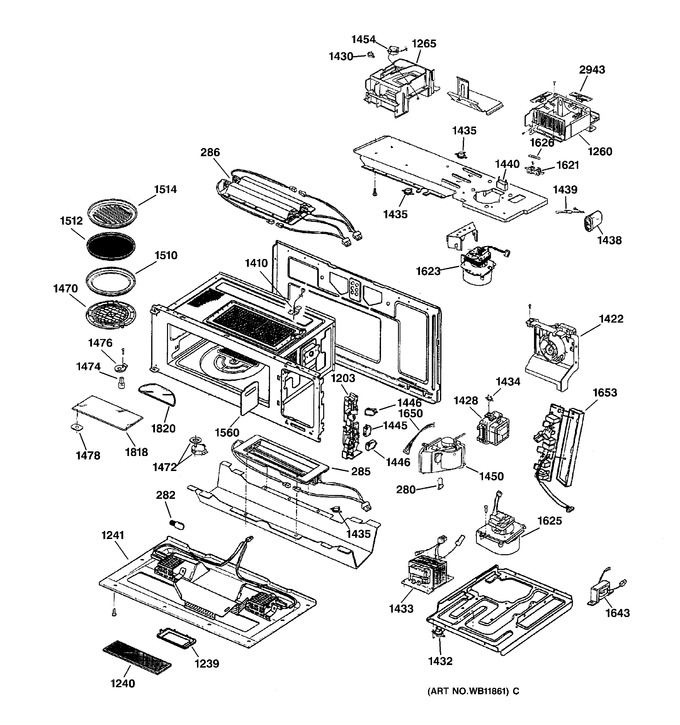

1 - Door, Controls, Grill & Case
2 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 280 | WB36X10131 | Cavity Lamp |
|
- | |||||
| 282 | WB36X10132 | Lamp |
|
- | |||||
| 285 | WB36X10125 | Btm Halogen Lamp Assy |
|
- | |||||
| 286 | WB36X10126 | Upper Halogen Lamp Assy |
|
- | |||||
| 1203 | WB06X10216 | Latch Bracket |
|
- | |||||
| 1239 | WB36X10133 | Cooktop Halogen Gls Assy |
|
- | |||||
| 1240 | WB06X10218 | Grease Filter Assy |
|
- | |||||
| 1241 | WB56X10136 | Base Plate Sub Assy |
|
- | |||||
| 1260 | WB38X10027 | Air Tunnel Inlet |
|
- | |||||
| 1265 | WB38X10026 | Air Tunnel Outlet |
|
- | |||||
| 1410 | WB27X10326 | Thermistor |
|
- | |||||
| 1422 | WB26X10063 | Magnetron Fan Assy |
|
- | |||||
| 1428 | WB27X10327 | Magnetron Assy |
|
- | |||||
| 1430 | WG02F02803 | Tco, Oven Cavity (Replaces: WB21X10046) |
|
$ 25.73 | |||||
| 1432 | WB21X10045 | Tco, Base Hood |
|
- | |||||
| 1433 | WB27X10331 | Transformer,high Voltage |
|
- | |||||
| 1434 | WB20X167 | Tco, Mag |
|
- | |||||
| 1435 | WB20X168 | Tco Upper&lower Halogen |
|
- | |||||
| 1438 | WB27X10043 | Capacitor, High Voltage |
|
- | |||||
| 1439 | WG02F00383 | Diode (Replaces: WB27X10330) |
|
$ 52.97 | |||||
| 1440 | WB27X10329 | Capacitor |
|
- | |||||
| 1445 | WB24X817 | Switch Monitor Interlock |
|
- | |||||
| 1446 | WG02F01561 | Sw Prim Interlock & Door (Replaces: WB24X10029) |
|
Immediately | $ 22.87 | ||||
| 1450 | WB06X10217 | Damper Door Assy |
|
- | |||||
| 1454 | WB24X10044 | Sensor, Humidity |
|
- | |||||
| 1470 | WG02F04468 | Turn Table (Replaces: WB06X10219) |
|
$ 100.56 | |||||
| 1472 | WB26X10059 | Turn Table Motor |
|
- | |||||
| 1474 | WG02F04475 | Shaft,turn Table (Replaces: WB02X10624) |
|
$ 17.15 | |||||
| 1476 | WB36X10128 | Lower Glass Hold Down |
|
- | |||||
| 1478 | WB36X10127 | Upper Glass Hold Down |
|
- | |||||
| 1510 | WG02L08466 | Tray, Ceramic (Replaces: WB49X10052) |
|
$ 163.82 | |||||
| 1512 | WB49X10053 | Tray, Metal Pan |
|
- | |||||
| 1514 | WB49X10054 | Tray, Grill Pan |
|
- | |||||
| 1560 | WB06X10215 | Wave Guide, Mica Cover |
|
- | |||||
| 1621 | WB06X10034 | Fuse Holder |
|
- | |||||
| 1623 | WB26X10061 | Upper Blower Motor |
|
- | |||||
| 1625 | WB26X10060 | Lower Blower Motor |
|
- | |||||
| 1626 | WB27X10114 | Fuse |
|
- | |||||
| 1643 | WB20X10015 | Transformer, Low Voltage |
|
- | |||||
| 1650 | WB27X10335 | Fuse, Thermal |
|
- | |||||
| 1653 | WB27X10334 | Relay Board |
|
- | |||||
| 1818 | WB36X10129 | Top Glass |
|
- | |||||
| 1820 | WB36X10130 | Bottom Glass |
|
- | |||||
| 2943 | WB01X10093 | Mounting Nut Assy |
|
- | |||||
| WG02F03021 | Magnetron |
|
$ 253.98 |
