SELECT A DIAGRAM

1 - Freezer Door

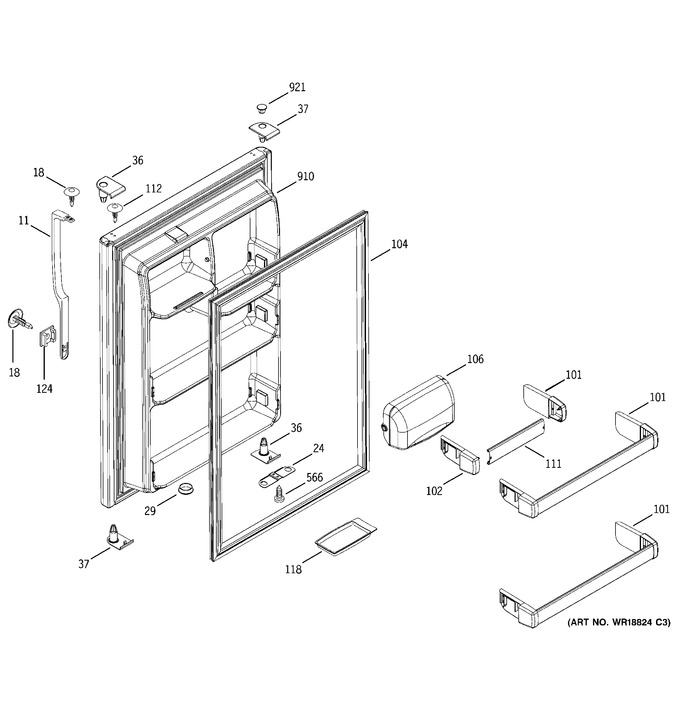

2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	WR12X10412		Handle Door Asm Ff Wh		Appelez-nous	-
18	WR1X1726		Scr 10-16 Ab 3/4 Ss		Appelez-nous	-
24	WR02X10740		Stop Door Ff		Appelez-nous	-
29	WR2X8087		Plug Button Insert Wh		Appelez-nous	-
36	WR02X10713		Cap Door Corner Wh		Appelez-nous	-
37	WR02X10715		Cap Door Corner Wh		Appelez-nous	-
101	WR02X10789		Cap Shelf Front Rh		Appelez-nous	-
102	WR02X10790		Cap Shelf Front Lh		Appelez-nous	-
104	WR24X10094		Gasket Door Ff Wh		Appelez-nous	-
106	WG03L09118		Door Dairy Clear   (Replaces: WR22X10024)				$ 63.72
111	WR71X10282		Shelf Front Ff Half		Appelez-nous	-
112	WR01A00517		Plug Door Rvsbl Wh   (Replaces: WR2X8693)				$ 4.37
118	WR19X5003		Butter Dish		Appelez-nous	-
124	WR12X10129		Plug Button Handle Wh		Appelez-nous	-
566	WR1X1728		Scr 10-16 1/2 Ph		Appelez-nous	-
910	WR78X10412		Door Foam Asm Ff Wh		Appelez-nous	-
921	WR02X10724		Plug Door Thimble Wh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
