SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Evaporator Area & Rollers


05 - Freezer Door


06 - Interior Cabinet & Freezer Shelving


07 - Optional Ice Maker Kit Ic11b P1328003w


08 - Refrigerator Door


09 - Refrigerator Shelving


10 - Supplemental Information


11 - Water Dispenser/filter


12 - Wiring Information

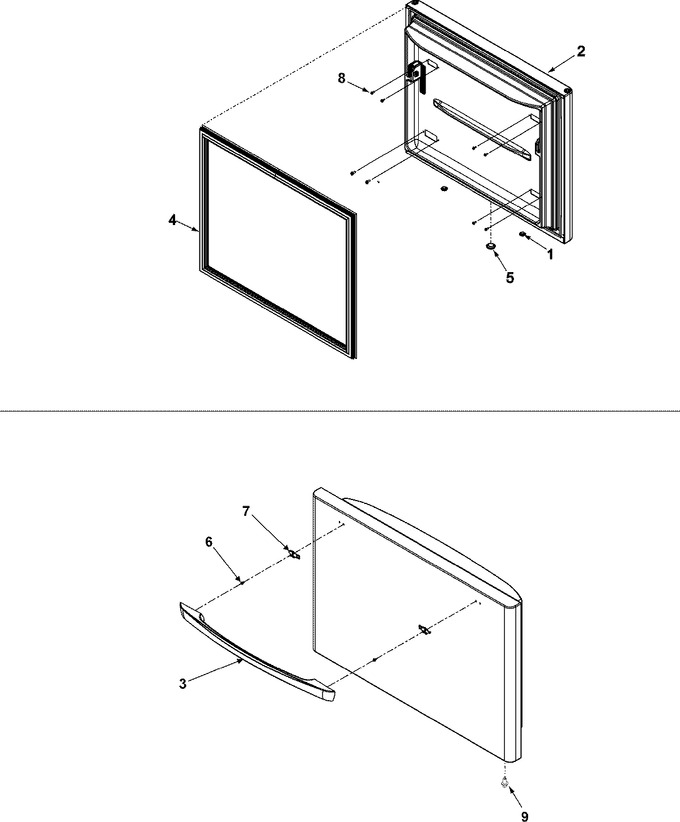

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004838		Plug, Button (blk)   (Replaces: 67001016)	10			$ 11.21
2	67004366		Door Assy., Frz. Foam (stnls)		Appelez-nous	-
3	67004959		Handle, Face Mount (stnls)	10	Appelez-nous	-
4	WPW10436250		Gasket, Fz Door (blk)   (Replaces: 67003555)	10		Immediately	$ 365.39
5	A3080001		Plug, Button (blk)	10	Appelez-nous	-
6	WP12992902		Screw, Handle Shoulder   (Replaces: 12992902)	13			$ 11.91
6	WP67006197		Screw-hi Lo/hex   (Replaces: 67007060)	11			$ 9.11
6	WP7101P126-60		Screw, Sm No.10   (Replaces: 67003800)	10		Immediately	$ 8.36
7	WP67007126		Clip, Handle Keyhole   (Replaces: 67007126)	13			$ 8.27
7	WP67006852		Clip,handle Butterfly   (Replaces: 12723002)	10			$ 27.25
7	67007059		Clip-c Channel Handle	11			$ 27.86
8	12991101		Screw, Sm Hex Head   (Replaces: 67006408)	13			$ 13.47
8	12991101		Screw, Sm   (Replaces: M0210816)	10			$ 13.47
9	WP67003639		Closure, Door (blk)   (Replaces: 67003639)	10			$ 90.32

    View Diagram in Separate Window       Print Part List
