SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Evaporator Area & Rollers


05 - Freezer Door


06 - Interior Cabinet & Freezer Shelving


07 - Optional Ice Maker Kit Ic11b P1328003w


08 - Refrigerator Door


09 - Refrigerator Shelving


10 - Supplemental Information


11 - Water Dispenser/filter


12 - Wiring Information

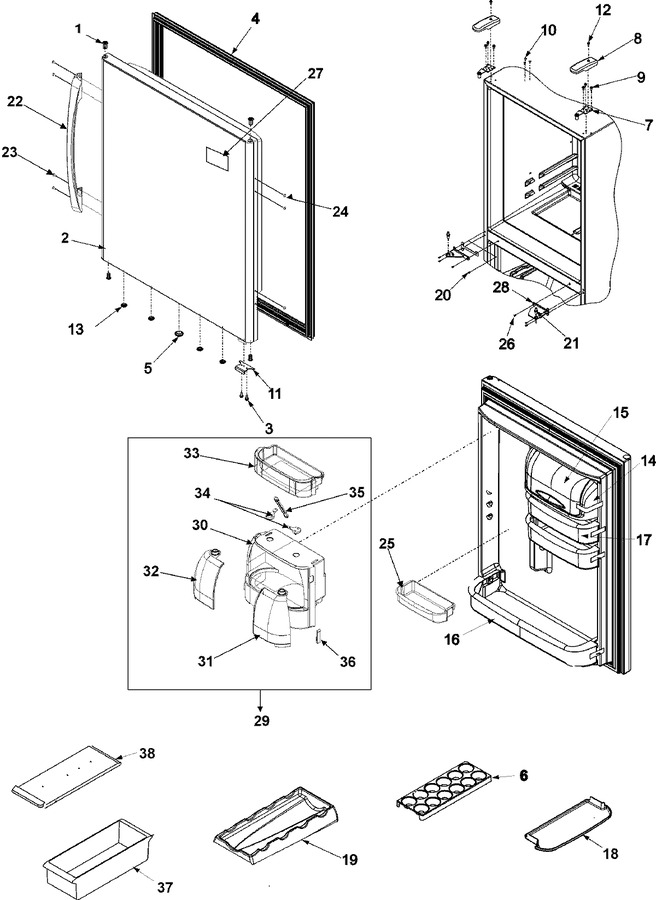

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004978		Bushing, Door (blk)   (Replaces: 67003369)	10			$ 21.05
2	67004362		Door Assy., Ref. Foam (stnls)	10	Appelez-nous	-
3	WPW10348409		Screw, Mounting   (Replaces: M0211533)	10		Immediately	$ 7.76
3	WP98165		Screw   (Replaces: 67006287)	13			$ 8.00
4	WPW10436248		Gasket, Ref Door (blk)   (Replaces: 67003553)	10			$ 286.97
5	A3080001		Plug, Button (blk)	10	Appelez-nous	-
6	10436506		Tray, Egg	10			$ 8.28
7	WP12566606ED		Hinge, Top (blk)   (Replaces: 67001011)	10		Immediately	$ 44.89
8	67001012		Cover, Top Hinge (blk)	10			$ 47.34
9	WP489349		Screw   (Replaces: 67006303)	13		Immediately	$ 7.88
9	R9800670		Screw, Tf   (Replaces: M0238731)	10			$ 9.38
10	WP12246608		Plug, Top Hinge Button (blk)   (Replaces: M0310731)	10		Immediately	$ 7.76
11	W11708403		Stop, Door (blk)   (Replaces: 67003780)	10		Immediately	$ 14.05
12	WP8281196		Screw, Mach   (Replaces: M0202336)	10		Immediately	$ 7.19
12	WP8281196		Screw   (Replaces: 67006521)	13		Immediately	$ 7.19
13	67004838		Plug, Button (blk)   (Replaces: 67001016)	10			$ 10.68
14	WP67001279		Tray, Dairy   (Replaces: 67001279)	10		Immediately	$ 83.82
15	WP12744905		Dairy Assy   (Replaces: 67003819)	10			$ 108.56
16	67004595		Retainer, Door	10	Appelez-nous	-
17	WPW10371193		Bucket, Ref Dr (med)   (Replaces: 67003775)	13		Immediately	$ 74.80
17	WPW10371193		Bucket Assy, Ref. (med W/grip)   (Replaces: 67003770)	10		Immediately	$ 74.80
18	67003212		Gripper, Bucket	10	Appelez-nous	-
19	67001656		Trivet, Bottle	10			$ 69.04
20	WP489349		Screw, Tf   (Replaces: M0239730)	10		Immediately	$ 7.88
21	WP67006642		Pin, Center Hinge   (Replaces: 67002734)	10			$ 7.93
21	WP67006642		Pin, Center Hinge   (Replaces: 67006642)	13			$ 7.93
22	67003876		Card, Handle Release	10			$ 6.43
22	67004450		Handle Assy Ref Dr (stnls)x	10	Appelez-nous	-
23	WP12992902		Screw, Handle Shoulder   (Replaces: 12992902)	13			$ 11.07
23	67006806		Screw (blk)   (Replaces: 67004049)	10			$ 13.35
24	WP12246608		Plug, Handle Hole (blk)   (Replaces: 12246603)	10		Immediately	$ 7.76
24	WP12246610		Plug, Handle Hole (stnls)   (Replaces: 12246606)	10		Immediately	$ 7.76
24	12246604		Plug, Handle Hole (bsq)	10	Appelez-nous	-
25	67004469		Bucket, Ref Dr Short	10	Appelez-nous	-
25	WPW10371194		Bucket, Ref Dr Short   (Replaces: 67004451)	13		Immediately	$ 73.55
26	W11573362		Screw   (Replaces: 67006380)	13			$ 14.02
26	W11573362		Screw, T. F.   (Replaces: M0226233)	10			$ 14.02
27	Y12528501		Nameplate (amana Plus)	10		Immediately	$ 59.75
28	WP12607104ED		Hinge, Center (blk)   (Replaces: 67001167)	10			$ 152.73
29	67004596		Chiller Assy	10	Appelez-nous	-
30	67004597		Frame, Chiller	10	Appelez-nous	-
31	67004598		Door, Chiller (rt)	10			$ 36.77
32	67004599		Door, Chiller (lt)	10	Appelez-nous	-
33	67004600		Bucket, Chiller	10	Appelez-nous	-
34	67002293		Linkage, Chiller	10			$ 11.76
35	67004601		Linkage, Chiller Ctr	10	Appelez-nous	-
36	67004602		Hook, Chiller Frame	10	Appelez-nous	-
37	10423131		Bin, Utility	10			$ 31.13
38	10436404		Lid, Utility	10			$ 60.85

    View Diagram in Separate Window       Print Part List
