SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Icemaker Parts, Optional Parts (not Included)

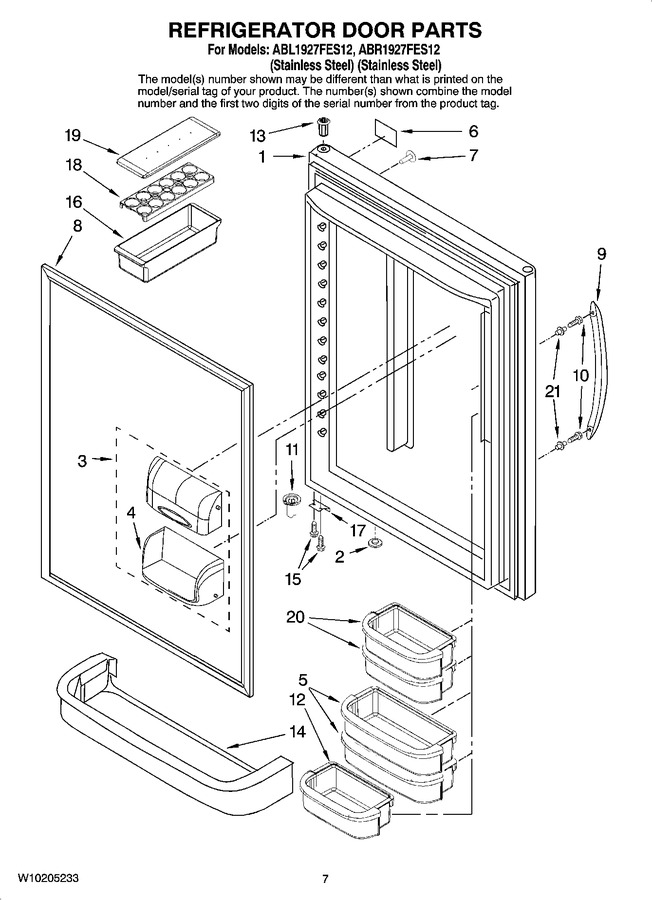

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10203482		Refrigerator Door (w/ Insulation) (stainless Steel)		Appelez-nous	-
2	67004838		Plug, Vent (black)				$ 11.21
3	WP12744905		Door, Compartment   (Replaces: 67003819)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	WPW10371193		Bucket (2) (medium)   (Replaces: 67003770)			Immediately	$ 74.80
6	Y12528501		Nameplate			Immediately	$ 62.74
7	WP12246608		Plug, Button (2) (black)   (Replaces: 67001131)			Immediately	$ 8.15
8	WPW10436245		Gasket, Door Magnetic (black)   (Replaces: 12683815B)				$ 362.36
9	W10159105		Handle, Door (stainless Steel)				$ 173.31
10	WP3387230		Screw   (Replaces: 67002935)			Immediately	$ 8.54
11	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 90.32
12	67001141		Bucket (1) (short)   (Replaces: 67004276)			Immediately	$ 78.91
13	67004978		Bushing (black)				$ 22.10
14	67002505		Retainer, Door		Appelez-nous	-
15	WP98165		Screw   (Replaces: 67006287)				$ 8.57
16	10423131		Bin, Utility				$ 31.13
17	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.75
18	10436506		Tray, Egg				$ 8.28
19	10436404		Lid, Utility				$ 60.85
20	67003771		Bucket (2) (small)		Appelez-nous	-
21	WP67006113		Mount, Handle   (Replaces: 67006113)			Immediately	$ 12.56

    View Diagram in Separate Window       Print Part List
