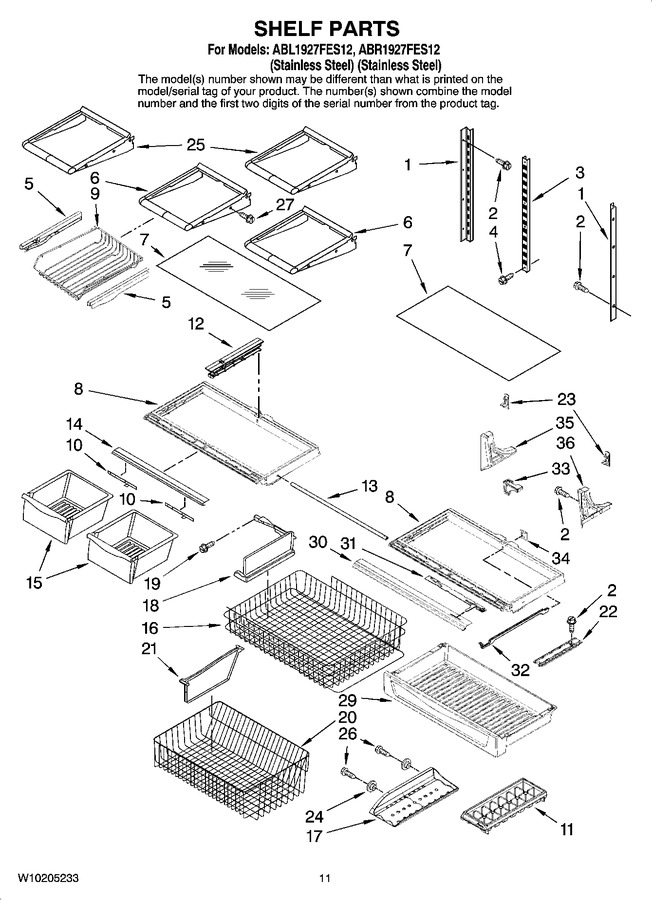

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67001302 | Ladder, Side |
|
- | |||||
| 2 | 67006425 | Screw (6) (Replaces: 67006400) |
|
Immediately | $ 7.30 | ||||
| 3 | 67001073 | Ladder, Center |
|
$ 56.89 | |||||
| 4 | W10709795 | Screw (2) (Replaces: 67006360) |
|
$ 13.79 | |||||
| 5 | WP67001054 | Glide, Rack (left) (Replaces: 67001054) |
|
Immediately | $ 8.82 | ||||
| 6 | 67003707 | Shelf, Stationary |
|
- | |||||
| 7 | WP67006877 | Glass, Crisper (Replaces: 67006877) |
|
Immediately | $ 209.75 | ||||
| 8 | WPW10671240 | Frame, Crisper (Replaces: 67001153) |
|
Immediately | $ 138.10 | ||||
| 9 | 67001301 | Rack Can |
|
- | |||||
| 10 | WP67005864 | Slide, Humidity (Replaces: 67005864) |
|
Immediately | $ 8.20 | ||||
| 11 | WP841180A | Tray, Ice Cube (Replaces: 67001747) |
|
Immediately | $ 47.84 | ||||
| 12 | WPW10671238 | Rail, Center Crisper (Replaces: 67001057) |
|
Immediately | $ 118.46 | ||||
| 13 | WP12227302WD | Brace, (2) Crisper Frame (Replaces: 67001155) |
|
$ 111.60 | |||||
| 14 | 67006884 | Trim, Crisper |
|
$ 398.85 | |||||
| 15 | W10833530 | Pan, Crisper (2) (Replaces: 67006827) |
|
$ 158.61 | |||||
| 16 | 67004985 | Basket, Freezer (upper) |
|
$ 99.88 | |||||
| 17 | 12646501 | Rack, Ice |
|
- | |||||
| 18 | 67004127 | Divider, Upper Basket |
|
$ 10.10 | |||||
| 19 | 67006608 | Screw |
|
- | |||||
| 20 | W10503182 | Basket, Freezer (lower) (Replaces: W10143560) |
|
$ 241.97 | |||||
| 21 | 67006644 | Divider, Lower Basket |
|
- | |||||
| 22 | WP67001719 | Track-pastry (Replaces: 67001719) |
|
Immediately | $ 8.99 | ||||
| 23 | WP67001716 | Hook, Ladder (Replaces: 67001716) |
|
Immediately | $ 11.14 | ||||
| 24 | 10972101 | Spacer, Rack |
|
$ 7.82 | |||||
| 25 | 67004281 | Shelf, Glide (2) |
|
- | |||||
| 26 | WP67006908 | Screw (2) (Replaces: 67006908) |
|
Immediately | $ 8.78 | ||||
| 27 | W11233072 | Screw (Replaces: 67006626) |
|
Immediately | $ 14.72 | ||||
| 29 | 67005905 | Pan, Pantry |
|
- | |||||
| 30 | 67002279 | Trim, Pantry Front |
|
- | |||||
| 31 | 67002002 | Slide,pantry |
|
Immediately | $ 16.04 | ||||
| 32 | 67002003 | Bar,pantry |
|
$ 47.06 | |||||
| 33 | WP12531601 | Tunnel,pantry (Replaces: 67002004) |
|
$ 11.04 | |||||
| 34 | 67002005 | Gasket, Pantry |
|
- | |||||
| 35 | WP67001721 | Support, Left (Replaces: 67001721) |
|
Immediately | $ 8.70 | ||||
| 36 | WP67001722 | Support, Right (Replaces: 67001722) |
|
Immediately | $ 8.93 | ||||
| 5A | WP67001053 | Glide, Rack (right) (Replaces: 67001053) |
|
Immediately | $ 9.24 |
