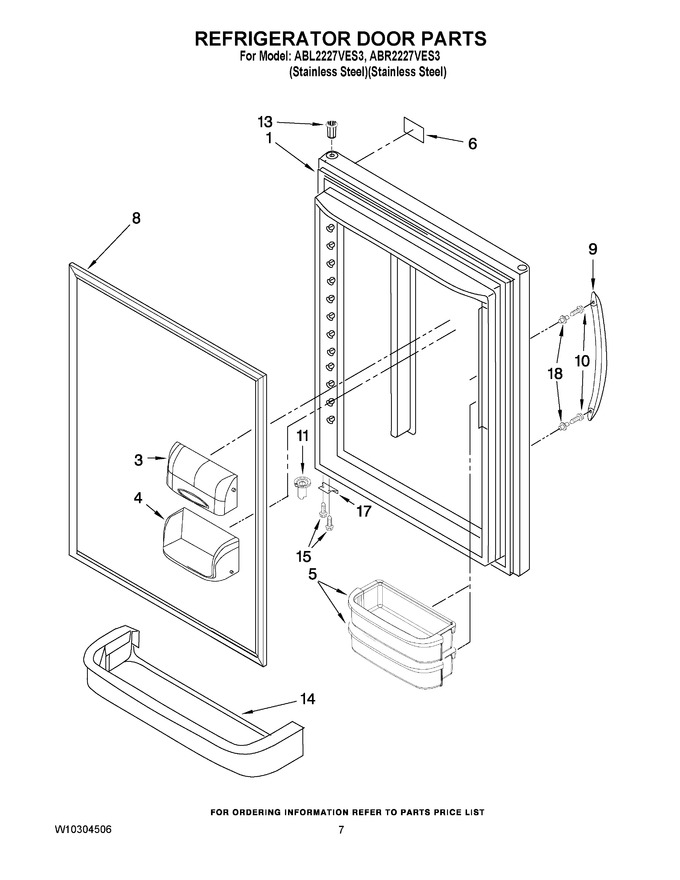

04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13023879SQ		Refrigerator Door (w/ Insulation) Stainless Steel (left)		Appelez-nous	-
1	13023877SQ		Refrigerator Door (w/ Insulation) Stainless Steel (right)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	WPW10324005		Bucket (2) (medium)   (Replaces: 12557212V)				$ 77.75
6	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 62.74
8	WPW10436248		Gasket, Door Magnetic (black)   (Replaces: W10164035)				$ 286.97
9	W10136873N		Handle, Door (stainless Steel)		Appelez-nous	-
10	W10290759		Screw				$ 5.83
11	WP67003639		Closure, Door (black)   (Replaces: 12028505B)				$ 90.32
13	67004978		Bushing (black)   (Replaces: 10961006B)				$ 22.10
14	67001019		Retainer, Door   (Replaces: 12557905)			Immediately	$ 112.90
15	WP98165		Screw   (Replaces: 12990504)				$ 8.57
17	W11708403		Stop, Door (black)   (Replaces: 10447112)			Immediately	$ 14.75
18	WP67006113		Mount, Handle   (Replaces: 13001201)			Immediately	$ 12.56
