SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts

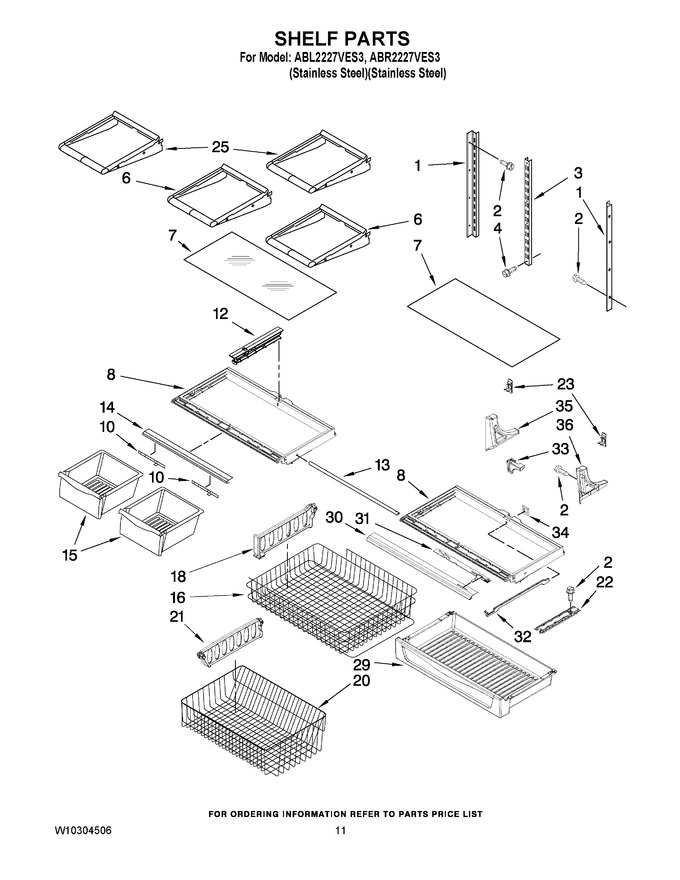

06 - Shelf Parts


07 - Unit Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10251969		Ladder, Side				$ 29.94
2	67006425		Screw   (Replaces: 12990513)			Immediately	$ 6.95
3	W10273463		Ladder, Center				$ 28.20
4	W10709795		Screw (2)   (Replaces: 12990515)				$ 13.13
6	W11402523		Shelf, Stationary   (Replaces: 12463509)			Immediately	$ 221.39
7	WP67006878		Glass, Crisper   (Replaces: 12204822)			Immediately	$ 185.19
8	12724003KVF		Frame, Crisper		Appelez-nous	-
10	WP67005864		Slide, Humidity   (Replaces: 12530805SP)			Immediately	$ 7.81
12	WPW10671238		Rail, Center Crisper   (Replaces: 12530701)			Immediately	$ 112.82
13	WP12227303WD		Brace, Crisper Frame   (Replaces: 12227303WD)				$ 105.95
14	W10231341		Trim, Crisper				$ 50.13
15	12724122N		Pan, Crisper (2)		Appelez-nous	-
16	W10201223		Basket, Freezer (upper)		Appelez-nous	-
18	W10241046		Divider, Upper Basket			Immediately	$ 27.80
20	WPW10503183		Basket, Freezer (lower)   (Replaces: W10150038)			Immediately	$ 237.48
21	W10205416		Divider, Lower Basket		Appelez-nous	-
22	WP67001719		Track-pantry   (Replaces: 12531901)			Immediately	$ 8.56
23	WP67001716		Hook, Ladder   (Replaces: 12531802)			Immediately	$ 10.61
25	12657848		Shelf, Glide (2)		Appelez-nous	-
29	WPW10328329		Pan, Pantry   (Replaces: 12645020)				$ 154.44
30	W10656985		Trim, Pantry Front   (Replaces: W10231333)				$ 131.12
31	12531502		Slide,pantry		Appelez-nous	-
32	12531401		Bar, Pantry		Appelez-nous	-
33	WP12531601		Tunnel, Pantry   (Replaces: 12531601)				$ 10.51
34	12531701		Gasket, Pantry		Appelez-nous	-
35	WP67001721		Support-left   (Replaces: 12531001)			Immediately	$ 8.70
36	WP67001722		Support-right   (Replaces: 12531002)			Immediately	$ 8.93

    View Diagram in Separate Window       Print Part List
