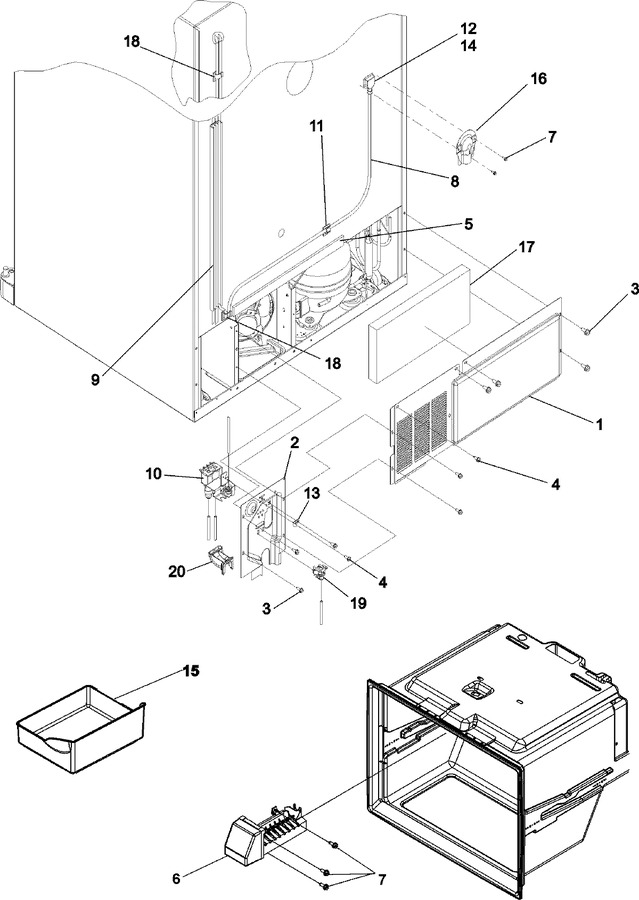

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67006101 | Cover, Mc Back | 10 |
|
$ 76.68 | ||||
| 2 | 67004611 | Cover, Water Valve | 10 |
|
- | ||||
| 3 | 67006425 | Screw, Sm | 10 |
|
Immediately | $ 6.95 | |||
| 4 | WP98165 | Screw, Sm (Replaces: 67006287) | 10 |
|
$ 8.00 | ||||
| 5 | B5759649 | Gasket, Mc Back | 10 |
|
- | ||||
| 6 | WP67004028 | Arm, Im Shutoff (Replaces: 67004028) | 10 |
|
Immediately | $ 91.35 | |||
| 6 | D7824706Q | Ice Maker Assy. | 10 |
|
Immediately | $ 167.35 | |||
| 6 | WPD7813010 | Harness, Ice Maker (Replaces: 67006614) | 10 |
|
Immediately | $ 73.97 | |||
| 7 | WP98165 | Screw, Sm (Replaces: 67006287) | 10 |
|
$ 8.00 | ||||
| 8 | WPB5705307 | Tube, Plastic (Replaces: 67003729) | 10 |
|
$ 12.43 | ||||
| 9 | 67004102 | Track, Waterline | 10 |
|
$ 31.99 | ||||
| 10 | WP67006531 | Valve, Dual Water (Replaces: 67006531) | 10 |
|
Immediately | $ 167.68 | |||
| 11 | WPM0104106 | Clip (Replaces: M0104106) | 10 |
|
$ 7.78 | ||||
| 12 | W11817981 | Fill Tube Assy (Replaces: 67004099) | 10 |
|
Immediately | $ 86.92 | |||
| 13 | W10833902 | Clamp, Tube (Replaces: M0108105) | 10 |
|
$ 10.99 | ||||
| 14 | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) | 10 |
|
Immediately | $ 7.82 | |||
| 15 | WP67001255 | Pan, Ice (Replaces: 67001255) | 10 |
|
$ 203.08 | ||||
| 16 | 12726003 | Cover, Water Line (Replaces: 67003331) | 10 |
|
$ 18.28 | ||||
| 17 | 67003796 | Fiber, Acoustic | 10 |
|
$ 19.27 | ||||
| 18 | M0104102 | Clip, Cord | 10 |
|
$ 8.10 | ||||
| 19 | 67002816 | Clip, Waterline | 10 |
|
$ 18.24 | ||||
| 20 | 12831101 | Sweep, Dual Tube (Replaces: 67004101) | 10 |
|
$ 12.41 | ||||
| NI | WP67006506 | Cord, Power (Replaces: 67006506) | 10 |
|
$ 26.42 |
