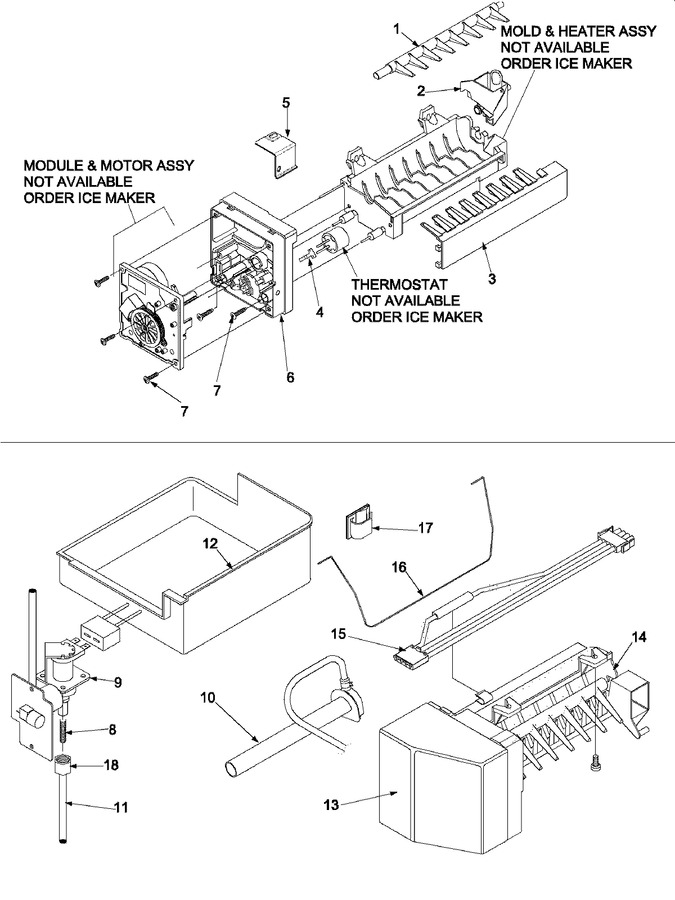

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP627843 | Ejector, Ice (Replaces: 95101-1) | 10 |
|
$ 83.60 | ||||
| 2 | WP628356 | Inlet, Water (Replaces: 95100-1) | 10 |
|
$ 51.19 | ||||
| 3 | WP2182124 | Stripper, Ice (Replaces: 95102-1) | 10 |
|
$ 86.05 | ||||
| 4 | WP2315522 | Retainer, Thermostat (Replaces: 95104-1) | 10 |
|
$ 11.05 | ||||
| 5 | WP2256087 | Bracket, Module & Heater (Replaces: 95107-1) | 10 |
|
$ 93.00 | ||||
| 6 | WP2195914 | Support, Module Housing (Replaces: 95103-1) | 10 |
|
$ 104.57 | ||||
| 7 | WP681249 | Screw (Replaces: 95106-1) | 10 |
|
Immediately | $ 7.86 | |||
| 8 | A1055105 | Spring, Anti Kink | 10 |
|
- | ||||
| 9 | WP67003753 | Valve-water (Replaces: 12638801) | 10 |
|
Immediately | $ 109.40 | |||
| 10 | W11176463 | Elbow, Fill Tube (Replaces: 10463201) | 10 |
|
Immediately | $ 114.15 | |||
| 11 | W10823511 | Tube, Plastic (Replaces: B5705323) | 10 |
|
Immediately | $ 32.41 | |||
| 12 | WP67001255 | Pan, Ice (Replaces: 67001255) | 10 |
|
$ 203.08 | ||||
| 13 | WPW10289690 | Cover, Ice Maker (Replaces: 10519807) | 10 |
|
Immediately | $ 8.40 | |||
| 14 | D7824706Q | Ice Maker Assy. (Replaces: 61005508) | 10 |
|
Immediately | $ 167.35 | |||
| 15 | WPD7813010 | Harness, Ice Makerx (Replaces: 67001489) | 10 |
|
Immediately | $ 73.97 | |||
| 16 | WP67004028 | Arm, Ice Maker (Replaces: 67001257) | 10 |
|
Immediately | $ 91.35 | |||
| 17 | WPM0104106 | Clip (Replaces: M0104106) | 10 |
|
$ 7.78 | ||||
| 18 | WP627018 | Nut, Sleeve (Replaces: M0753001) | 10 |
|
$ 10.97 | ||||
| NI | 67001264 | Instructions, Installation | 10 |
|
- | ||||
| NI | WPA3223101 | Insert, Plastic Tube (Replaces: A3223101) | 10 |
|
Immediately | $ 7.82 | |||
| NI | 10549601 | Label, Caution (ice Maker) | 10 |
|
- | ||||
| NI | W10833902 | Clamp, Tube (Replaces: M0108105) | 10 |
|
$ 10.99 | ||||
| NI | WP489128 | Screw, Bracket (Replaces: 95108-1) | 10 |
|
$ 10.88 | ||||
| NI | 67001258 | Retainer, Tube | 10 |
|
- | ||||
| NI | 681390 | Screw (Replaces: M0251015) | 10 |
|
$ 13.06 | ||||
| NI | 10244904 | Coupling | 10 |
|
$ 25.37 | ||||
| NI | 8003RP | Ice Maker Hook Up Kit (Replaces: R0131235) | 10 |
|
Immediately | $ 43.29 | |||
| NI | 10526701 | Clamp, Wire | 10 |
|
- | ||||
| NI | WP98165 | Screw, Sm (Replaces: M0211018) | 10 |
|
$ 8.00 | ||||
| NI | WPM0114003 | Clip, Speed (Replaces: M0114003) | 10 |
|
$ 11.05 |
