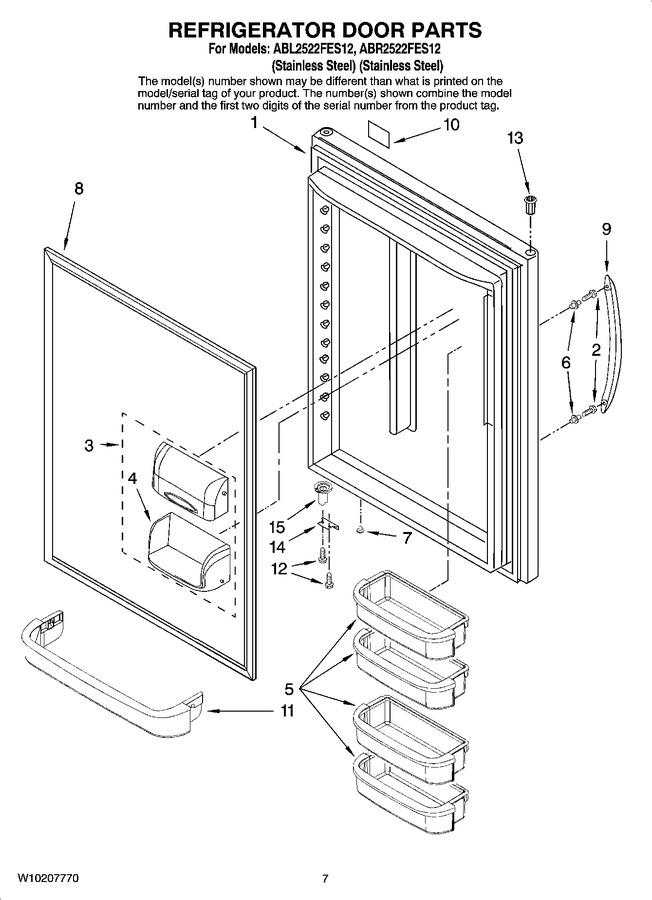

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13023834SQ		Refrigerator Door (w/liner) (right)		Appelez-nous	-
1	W10205209		Refrigerator Door (w/liner) (left)		Appelez-nous	-
2	WP3387230		Screw   (Replaces: 67002935)			Immediately	$ 8.54
3	WP12744905		Door, Dairy   (Replaces: 67003819)				$ 113.99
4	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 88.01
5	WP67001021		Bucket, Medium (4)   (Replaces: 67001021)				$ 84.95
6	WP67006113		Mount, Handle   (Replaces: 67006113)			Immediately	$ 12.56
7	67004838		Plug, Button (black)   (Replaces: W10153326)				$ 11.21
8	W10849442		Door Gasket, Magnetic (black)   (Replaces: W10133881)				$ 361.55
9	W10136873		Door Handle (black)				$ 99.41
10	Y12528501		Nameplate   (Replaces: 12528501)			Immediately	$ 62.74
11	67002477		Retainer, Ref Door		Appelez-nous	-
12	WP98165		Screw   (Replaces: 67006287)				$ 8.57
13	67004978		Bushing (black)				$ 22.10
14	W11708403		Stop, Door (black)   (Replaces: 67003780)			Immediately	$ 14.75
15	WP67003639		Closure, Door (black)   (Replaces: 67003639)				$ 90.32
