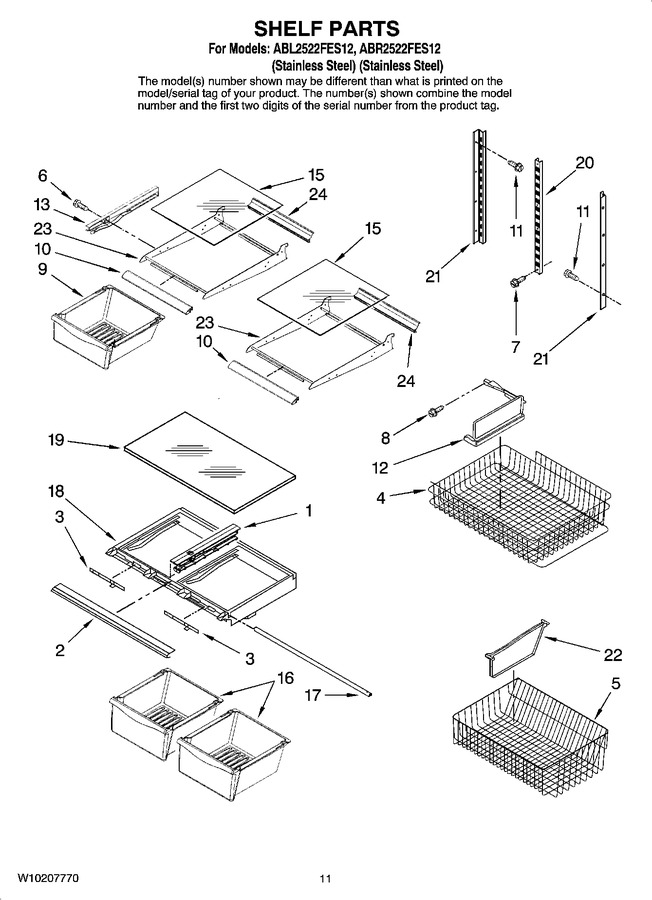

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10326469		Rail, Center Crisper   (Replaces: 67004514)			Immediately	$ 33.37
2	67004636		Trim, Crisper		Appelez-nous	-
3	WP67005864		Slide, Humidity Control   (Replaces: 67005864)			Immediately	$ 8.20
4	W10143524		Basket, Upper		Appelez-nous	-
5	WPW10503184		Basket, Freezer (lower)   (Replaces: W10143562)				$ 250.08
6	W11233072		Screw   (Replaces: 67006626)			Immediately	$ 14.72
7	W10709795		Screw   (Replaces: 67006360)				$ 13.79
8	67006608		Screw		Appelez-nous	-
9	67004512		Pan, Deli				$ 61.71
10	67006754		Trim, Front (4)		Appelez-nous	-
11	67006425		Screw (6)   (Replaces: 67006400)			Immediately	$ 7.30
12	67004127		Divider, Top				$ 10.10
13	WP67001054		Glide Lh   (Replaces: 67001054)			Immediately	$ 8.82
13	WP67001053		Glide Rh   (Replaces: 67001053)			Immediately	$ 9.24
15	12204819		Glass, Shelf		Appelez-nous	-
16	WP67004515		Pan, Crisper (2)   (Replaces: 67004515)			Immediately	$ 176.72
17	WP12642303WD		Brace, Crisper   (Replaces: 67002748)				$ 112.26
18	WP67003854		Frame, Crisper   (Replaces: 67003854)			Immediately	$ 227.55
19	WP67006704		Glass, Crisper   (Replaces: 67006704)				$ 212.77
20	67001073		Ladder, Center				$ 56.89
21	67001317		Ladder, Side				$ 39.13
22	67006644		Divider, Basket (lower)		Appelez-nous	-
23	10460117		Shelf (4)		Appelez-nous	-
24	67006810		Trim, Rear (4)		Appelez-nous	-
