01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Shelf Parts


07 - Unit Parts


08 - Optional Parts (not Included)

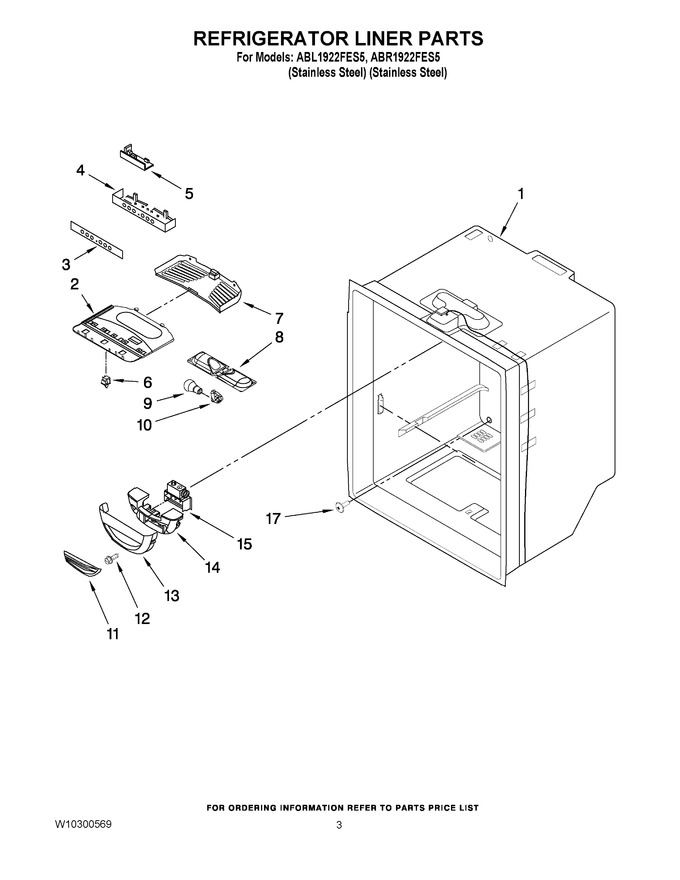

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not A Serviceable Part)		Appelez-nous	-
2	12806301		Bracket, Control And Lights		Appelez-nous	-
3	12816501		Overlay		Appelez-nous	-
4	WPW10464769		Housing, Electronic Control   (Replaces: 12806406)			Immediately	$ 108.34
5	WPW10503278		Board, Control   (Replaces: 12868513)			Immediately	$ 55.44
6	W11384469		Switch, Light   (Replaces: C3680310V)			Immediately	$ 37.23
7	W11284721		Cover, Light   (Replaces: 12806501)				$ 100.97
8	12806601		Housing, Light   (Replaces: 12806601V)				$ 104.95
9	W11679940		Bulb, Light (2)   (Replaces: W10194422V)			Immediately	$ 11.30
10	W11447232		Socket, Light (2)   (Replaces: 12570701V)			Immediately	$ 13.21
11	67003900		Insert, Damper Cover   (Replaces: 12806801)			Immediately	$ 8.14
12	W11772394		Screw (2)   (Replaces: 12990604)			Immediately	$ 12.16
13	WP12806701		Cover, Damper   (Replaces: 12806701)				$ 113.00
14	W11750607		Insulation   (Replaces: 13012402)				$ 47.76
15	WPW10196393		Control, Damper   (Replaces: W10196393)			Immediately	$ 166.07
17	M0310343		Plug, Button				$ 10.67
NI	W11619328		Harness, Controls (refrigerator)   (Replaces: 12868701)			Immediately	$ 95.67
