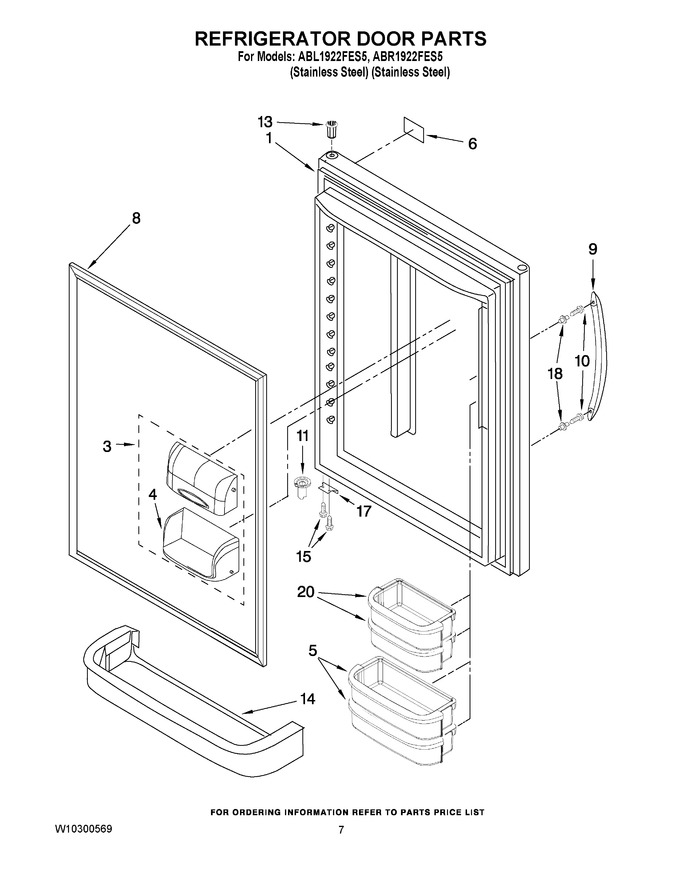

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13023887SQ | Refrigerator Door (w/ Insulation) Stainless Steel (left) |
|
- | |||||
| 1 | 13023886SQ | Refrigerator Door (w/ Insulation) Stainless Steel (right) |
|
- | |||||
| 3 | WP12744905 | Door, Compartment (Replaces: 12744905V) |
|
$ 108.56 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 83.82 | ||||
| 5 | WP67001021 | Bucket (2) (medium) (Replaces: 12557204V) |
|
$ 80.90 | |||||
| 6 | Y12528501 | Nameplate (Replaces: 12528501) |
|
Immediately | $ 59.75 | ||||
| 8 | WPW10436245 | Gasket, Door Magnetic (black) (Replaces: W10164031) |
|
$ 345.10 | |||||
| 9 | W10159105 | Handle, Door (stainless Steel) |
|
$ 173.31 | |||||
| 10 | 67006901 | Screw (Replaces: 12991703) |
|
Immediately | $ 8.02 | ||||
| 11 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 86.02 | |||||
| 13 | 67004978 | Bushing (black) (Replaces: 10961006B) |
|
$ 21.05 | |||||
| 14 | 67001139 | Retainer, Door (Replaces: 12557904) |
|
Immediately | $ 99.80 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 17 | W11708403 | Stop, Door (black) (Replaces: 10447112) |
|
Immediately | $ 14.05 | ||||
| 18 | WP67006113 | Mount, Handle (Replaces: 13001201) |
|
Immediately | $ 11.96 | ||||
| 20 | 67001141 | Bucket (2) Small (Replaces: 12557202) |
|
Immediately | $ 75.15 |
