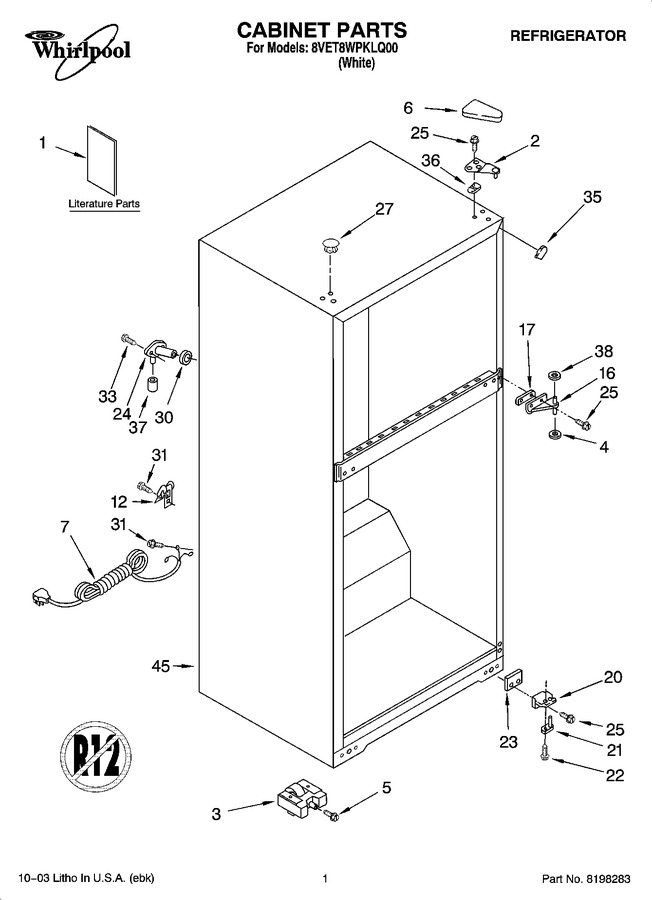

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT2201972 | Service & Wiring Sheet |
|
- | |||||
| 1 | LIT2222092 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | N/A | Following May Be Purchased Do-it-yourself Repair Manuals |
|
- | |||||
| 1 | LIT677969 | Literature Parts (do-it-yourself Manual, Ref/fzr) |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 3 | 2217757 | Roller-front |
|
- | |||||
| 4 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 5 | 2222100 | Screw |
|
$ 99.81 | |||||
| 6 | WP2213360 | Cover Hinge (Replaces: 2213360) |
|
$ 19.23 | |||||
| 7 | 2202153 | Cord, Service |
|
- | |||||
| 12 | 549193 | Clamp-cord |
|
$ 13.39 | |||||
| 16 | WP2166037 | Hinge, Center (Replaces: 2166086) |
|
$ 78.16 | |||||
| 17 | 2166043 | Shim, Hinge Center |
|
$ 66.44 | |||||
| 20 | WP2325482 | Hinge Butt, Btm (Replaces: 2221926) |
|
Immediately | $ 76.19 | ||||
| 21 | 9791682 | Hinge-pin, Btm |
|
$ 26.60 | |||||
| 22 | WP3428970 | Screw (Replaces: 3428970) |
|
$ 10.91 | |||||
| 23 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 7.77 | ||||
| 24 | WP2196157 | Fitting,water Tube (Replaces: 2174760) |
|
Immediately | $ 11.99 | ||||
| 25 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 27 | WP2151652 | Hole Plug (6) (Replaces: 2201012) |
|
$ 21.78 | |||||
| 30 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 31 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 33 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.79 | ||||
| 35 | W10859322 | Corner Filler (Replaces: 2166003) |
|
$ 7.70 | |||||
| 36 | W11169703 | Shim (Replaces: 2221885) |
|
$ 15.04 | |||||
| 37 | WP487996 | Cap Bushing (Replaces: 487996) |
|
$ 8.26 | |||||
| 38 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 10.88 | ||||
| 45 | N/A | Cabinet (not A Serviceable Part) |
|
- |
