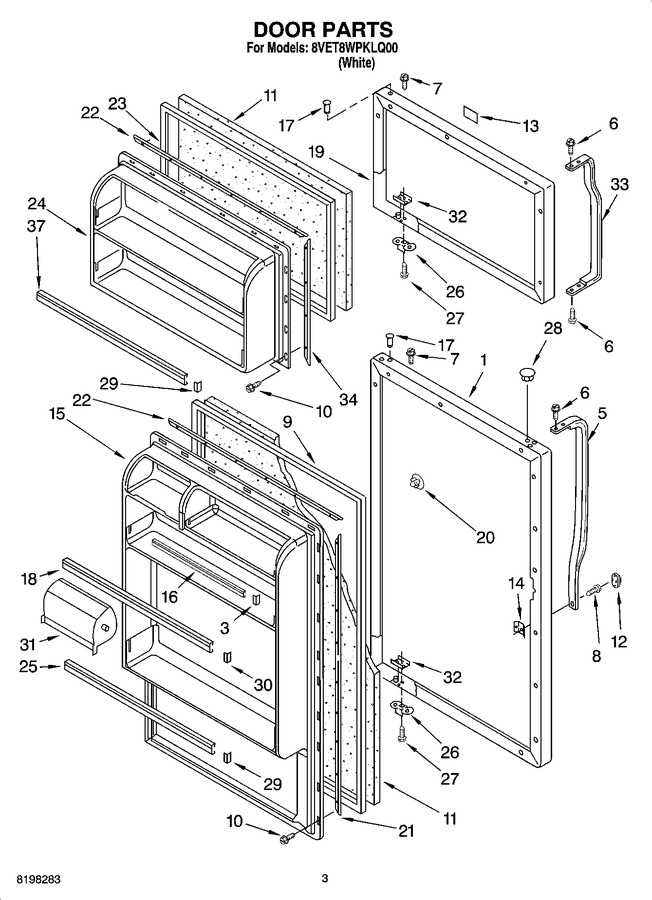

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2197087 | Refrigerator Door Panel (also Order Item 11) |
|
- | |||||
| 3 | 2159365 | Plug-trim |
|
$ 6.33 | |||||
| 5 | WP2221946W | Handle Center (Replaces: 2221946W) |
|
Immediately | $ 130.11 | ||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.19 | ||||
| 7 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.94 | |||||
| 8 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 7.56 | |||||
| 9 | WP2319264T | Door Gasket, Magnetic (Replaces: 2262080) |
|
Immediately | $ 192.71 | ||||
| 10 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 11 | 876029 | Foam Insulation (required When Replacing Exterior Door Panel) |
|
- | |||||
| 12 | WP2202819W | Cover, Screw (Replaces: 2202819W) |
|
Immediately | $ 7.75 | ||||
| 13 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 88.74 | ||||
| 14 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.50 | |||||
| 15 | 2197158 | Interior Door Panel (refrigerator) |
|
- | |||||
| 16 | 2197360 | Trim, Door Shelf (upper) |
|
- | |||||
| 17 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.75 | |||||
| 18 | 2192654 | Trim, Door (middle) |
|
- | |||||
| 19 | 2197086 | Freezer Door Panel (also Order Item 11) |
|
- | |||||
| 20 | WP2189000 | Hole Plug (Replaces: 2189000) |
|
Immediately | $ 7.40 | ||||
| 21 | 2197082 | Retainer, Gasket |
|
- | |||||
| 22 | 1120614 | Retainer, Gasket |
|
$ 27.51 | |||||
| 23 | 2188462A | Door Gasket, Magnetic (Replaces: 2262079) |
|
Immediately | $ 114.77 | ||||
| 24 | 2197159 | Interior Door Panel (freezer) |
|
- | |||||
| 25 | WP2266738 | Trim, Door Shelf (lower) (Replaces: 2192656) |
|
$ 111.69 | |||||
| 26 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 28 | WP2212648 | Hole Plug (Replaces: 2212648) |
|
Immediately | $ 7.80 | ||||
| 29 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 7.65 | ||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.18 | ||||
| 31 | 2174801 | Compartment Door |
|
- | |||||
| 32 | 2183000 | Tap Plate |
|
$ 36.19 | |||||
| 33 | WP2202098 | Handle, Fc (Replaces: 2202098) |
|
$ 149.35 | |||||
| 34 | 1122553 | Retainer, Gasket |
|
- | |||||
| 37 | WP2266727 | Trim-door (2) (Replaces: 2192653) |
|
Immediately | $ 92.50 |
