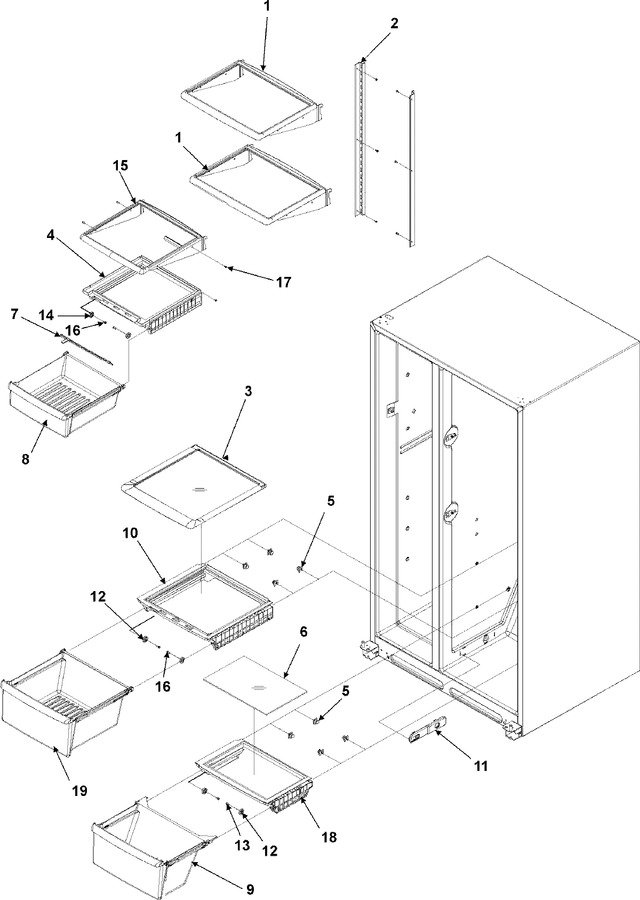

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004072		Shelf, Ref Sta	10	Appelez-nous	-
2	67003840		Rail, L/r Lg Sxs	10	Appelez-nous	-
2	WP90767		Screw, Sm   (Replaces: M0211016)	10		Immediately	$ 7.82
3	67004130		Shelf, Crisper Top	10	Appelez-nous	-
4	67004973		Frame, Bldr Adj Crisper	10	Appelez-nous	-
5	67004883		Mount, Crisper Support	10	Appelez-nous	-
6	67004132		Glass, Meat Shelf	10	Appelez-nous	-
7	67005209		Slide, Humidity		Appelez-nous	-
8	67004304		Pan, Sm Crisper	10	Appelez-nous	-
9	67003894		Pan, Meat	10	Appelez-nous	-
10	67004140		Frame, Crisper Shelf	10	Appelez-nous	-
11	67004311		Temp Control Assy	10			$ 69.25
12	67004133		Roller, Pan		Appelez-nous	-
13	67004174		Pin, Roller				$ 6.11
14	67004169		Roller, Crisper				$ 5.81
15	67004200		Shelf, Ref Sta		Appelez-nous	-
16	67006692		Screw, Shoulder   (Replaces: M0238105)				$ 10.28
17	YM0214931		Screw		Appelez-nous	-
18	67004247		Frame, Meat Shelf		Appelez-nous	-
19	67003893		Pan, Lg Crisper		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
