Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

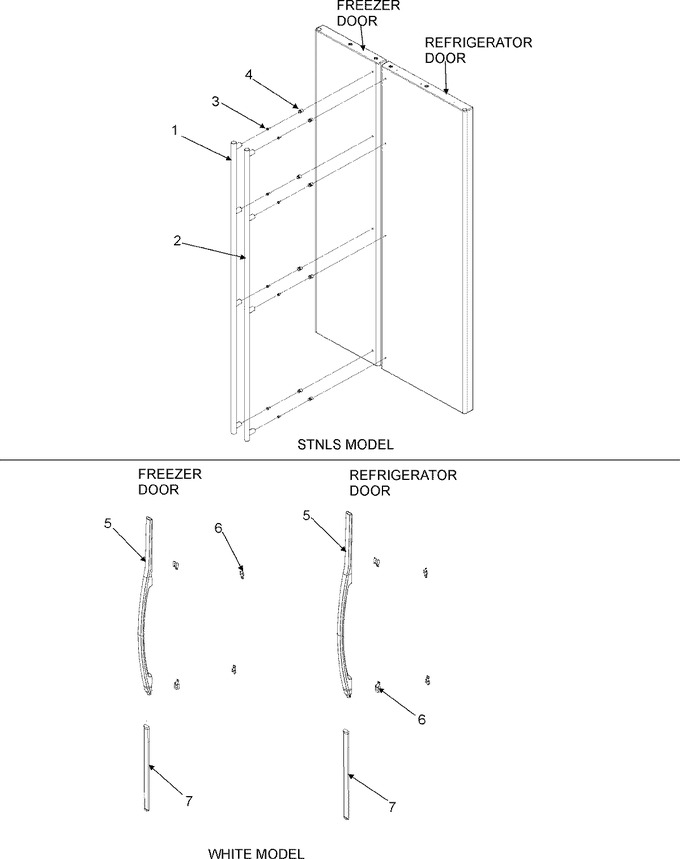

1	67004543		Handle, Frz. Door (stnls)	10	Appelez-nous	-
2	WP12850908		Handle, Ref. Door (stnls)   (Replaces: 67004544)	10			$ 300.63
3	67004545		Screw, Handle	10	Appelez-nous	-
4	67005100		Stand-off Handle	10	Appelez-nous	-
4	67004546		Mount, Handle	10	Appelez-nous	-
5	67004768		Handle Assy (wht)	10	Appelez-nous	-
6	WP67006197		Screw No.6 Hi Lo .312   (Replaces: 67004293)	10			$ 9.11
6	67004292		Clip, ``c`` Channel	10	Appelez-nous	-
7	67004297		Trim, Handle 36(wht)	10	Appelez-nous	-
