SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door

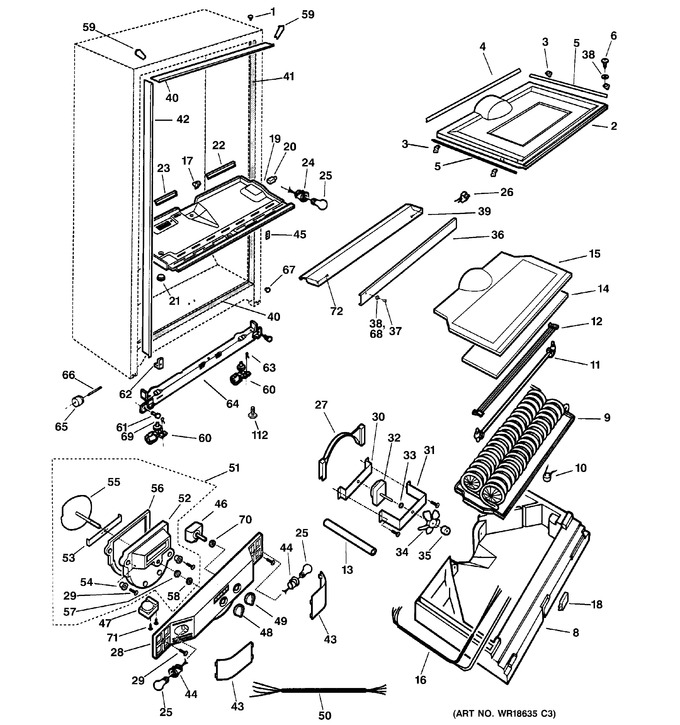

3 - Cabinet Parts


4 - Shelf Parts


5 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WR02X10244		Plug, Top (black)		Appelez-nous	-
2	WR17X10403		Liner, Bottom (ff)(white		Appelez-nous	-
3	WR02X10183		Support, Liner		Appelez-nous	-
4	WR14X10017		Gasket, Liner Rear		Appelez-nous	-
5	WR14X10018		Gasket, Liner Side		Appelez-nous	-
6	WR01X10067		Screw, Liner		Appelez-nous	-
8	WR17X10404		Evaporator Housing Asm.		Appelez-nous	-
9	WR85X10010		Evaporator		Appelez-nous	-
10	WR50X133		Thermostat, Defrost		Appelez-nous	-
11	WR51X10027		Heater, Defrost		Appelez-nous	-
12	WR02X10184		Shield		Appelez-nous	-
13	WR02X10185		Tube, Drain		Appelez-nous	-
14	WR02X10186		Heat Shield, Evaporator		Appelez-nous	-
15	WR02X10187		Cover, Evaporator		Appelez-nous	-
17	WR02X10188		Plug, Evaporator Housing		Appelez-nous	-
18	WR23X334		Switch Lamp Reed		Appelez-nous	-
19	WR17X10405		Liner, Top (fz)		Appelez-nous	-
19	WR01X10068		Screw		Appelez-nous	-
20	WR02X10190		Support, Liner Front		Appelez-nous	-
20	WR02X10189		Support, Liner Rear		Appelez-nous	-
21	WR02X10191		Plug, Test		Appelez-nous	-
22	WR02X10192		Deflector, Air - R.h.		Appelez-nous	-
23	WR02X10193		Deflector, Air - L.h.		Appelez-nous	-
24	WR01F01775		Socket & Terminal Asm   (Replaces: WR2X9391)				$ 8.34
25	PURCH. LOCAL		Bulb, Light		Appelez-nous	-
26	WR23X10093		Switch Light Fz		Appelez-nous	-
27	WR02X10194		Bridge, Evaporator Housi		Appelez-nous	-
28	WR17X10597		Housing, Control Tempera		Appelez-nous	-
29	WZ04X0244		Screw		Appelez-nous	-
30	WR02X10195		Bracket, Rear - Fan		Appelez-nous	-
31	WR02X10196		Bracket, Front - Fan		Appelez-nous	-
32	GEFM		Motor Evap Fan   (Replaces: WR60X203)			Immediately	$ 118.50
33	WR2X7391		Grommet		Appelez-nous	-
34	WR60X10022		Blade, Fan		Appelez-nous	-
35	WR2X9272		Ring Compression		Appelez-nous	-
36	WR02X10245		Crosspiece (black)		Appelez-nous	-
37	WR01X10094		Screw (black)		Appelez-nous	-
38	WR1X2056		Washer (nylon)		Appelez-nous	-
39	WR02X10198		Mullion		Appelez-nous	-
40	WR40X10024		Strip, Breaker - Top & B		Appelez-nous	-
41	WR40X10025		Strip, Breaker - R.h.		Appelez-nous	-
42	WR40X10026		Strip, Breaker - L.h.		Appelez-nous	-
43	WR02X10199		Shield, Lamp		Appelez-nous	-
44	WR02X10200		Socket, Light		Appelez-nous	-
45	WR02X10201		Nut Strip, Mid-hinge		Appelez-nous	-
46	WR09X10030		Control, Temperature		Appelez-nous	-
47	WR9X483		Control Defrost		Appelez-nous	-
48	WR02X10202		Knob, Damper (fz)		Appelez-nous	-
49	WR02X10203		Knob, Temperature Contro		Appelez-nous	-
50	WR23X10086		Harness, Temperature Con		Appelez-nous	-
51	WR02X10204		Air Diffuser Asm.		Appelez-nous	-
52	WR02X10205		Housing, Diffuser		Appelez-nous	-
53	WR02X10206		Bracket, Damper		Appelez-nous	-
54	WR02X10207		Bushing, Diffuser Housin		Appelez-nous	-
55	WR02X10208		Damper		Appelez-nous	-
56	WR14X10019		Gasket, Diffuser Housing		Appelez-nous	-
57	WR01X10070		Washer, Nylon		Appelez-nous	-
58	WR01X10071		Clip, Retainer		Appelez-nous	-
59	WR02X10246		Cap, Corner (black)		Appelez-nous	-
60	WR02X10210		Wheel, Front Asm		Appelez-nous	-
61	WR01X10072		Screw		Appelez-nous	-
62	WR02X10211		Nut-strip, Bottom Hinge		Appelez-nous	-
62	WR02X10212		Nut-strip, Bottom Hinge		Appelez-nous	-
63	WR01X10073		Pin, Cotter (1/8 Dia.)		Appelez-nous	-
64	WR79X10016		Angle		Appelez-nous	-
65	WG03L00758		Wheel, Rear   (Replaces: WR2X8244)				$ 12.71
66	WR2X8213		Axle		Appelez-nous	-
67	WR02X10247		Plug,(black)		Appelez-nous	-
68	WR01X10095		Washer, Nylon (black)		Appelez-nous	-
69	WR01X10074		Screw, Adjusting		Appelez-nous	-
70	WR01X10075		Nut, Mounting		Appelez-nous	-
71	WR1X2068		Screw-mounting, Timer		Appelez-nous	-
72	WR01X10076		Screw (white)		Appelez-nous	-
112	WR2X9264		Screw, Leveling		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
