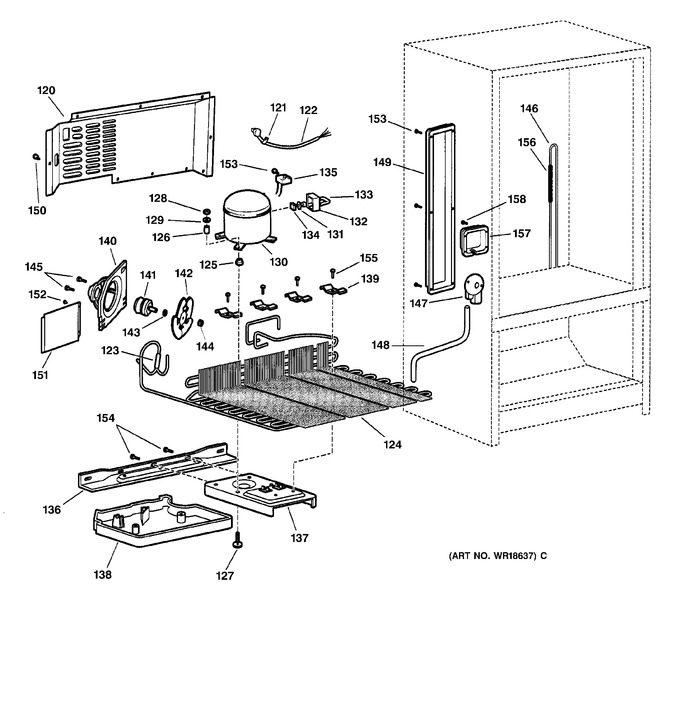

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Freezer Door
2 - Fresh Food Door
3 - Cabinet Parts
4 - Shelf Parts
5 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 120 | WR02X10219 | Cover, Access |
|
- | |||||
| 121 | WR02X10076 | Clamp |
|
- | |||||
| 122 | WR23X10087 | Harness, Cord - Compress |
|
- | |||||
| 123 | WR86X10006 | Dryer |
|
- | |||||
| 124 | WR84X10015 | Condenser Asm. |
|
- | |||||
| 125 | WR02X10220 | Grommet, Compressor Mtg. |
|
- | |||||
| 126 | WR02X10221 | Sleeve, Compressor |
|
- | |||||
| 127 | WR1X2156 | Bolt Comp. Mtg |
|
- | |||||
| 128 | WR1X2155 | Nut Comp. Mtg. |
|
- | |||||
| 129 | WR1X2154 | Washer Comp. Mtg. |
|
- | |||||
| 130 | WR87X10030 | Compressor Repl Kit |
|
- | |||||
| 131 | IC102 | Relay (ptcr) (Replaces: WR7X240) |
|
Immediately | $ 16.14 | ||||
| 132 | WR2X7834 | Cover Relay |
|
- | |||||
| 133 | WR2X7226 | Clamp-cover |
|
- | |||||
| 134 | WR8X169 | Overload |
|
- | |||||
| 135 | WR62X10012 | Capacitor |
|
- | |||||
| 136 | WR17X10407 | Rail, Rear - Compressor |
|
- | |||||
| 137 | WR17X10408 | Plate, Compressor Mtg. |
|
- | |||||
| 138 | WG03L00765 | Pan Water Disposal (Replaces: WR32X10037) |
|
$ 73.76 | |||||
| 139 | WR2X9000 | Clip Cond |
|
- | |||||
| 140 | WR17X10409 | Housing, Condenser Fan |
|
- | |||||
| 141 | WR60X10058 | Motor Cond Fan |
|
- | |||||
| 142 | WR60X275 | Blade Cond Fan Asm |
|
- | |||||
| 143 | WR1X1714 | Washer |
|
- | |||||
| 144 | WR1X1715 | Nut |
|
- | |||||
| 145 | WR1X1716 | Screw Cond Hsg. |
|
- | |||||
| 146 | WR02X10222 | Lines, Suction & Cap |
|
- | |||||
| 147 | WR02X10223 | Drain, Grommet S |
|
- | |||||
| 148 | WR01X10079 | Clamp, Drain Tube |
|
- | |||||
| 148 | WR02X10224 | Tube, Drain Extension |
|
- | |||||
| 149 | WR02X10225 | Cover, Cabinet Hx |
|
- | |||||
| 150 | WR01X10080 | Screw, Access |
|
- | |||||
| 151 | WR02X10226 | Baffle, Condenser Fan |
|
- | |||||
| 152 | WR01X10081 | Fastener, Baffle |
|
- | |||||
| 153 | WR01X10082 | Screw |
|
- | |||||
| 154 | WR01X10083 | Screw |
|
- | |||||
| 155 | WR01X10084 | Screw, Condenser |
|
- | |||||
| 156 | WR82X10056 | Insulation |
|
- | |||||
| 157 | WR02X10228 | Insulation, Cover |
|
- | |||||
| 157 | WR02X10227 | Cover |
|
- | |||||
| 158 | WR01X10085 | Screw |
|
- |
