SELECT A DIAGRAM

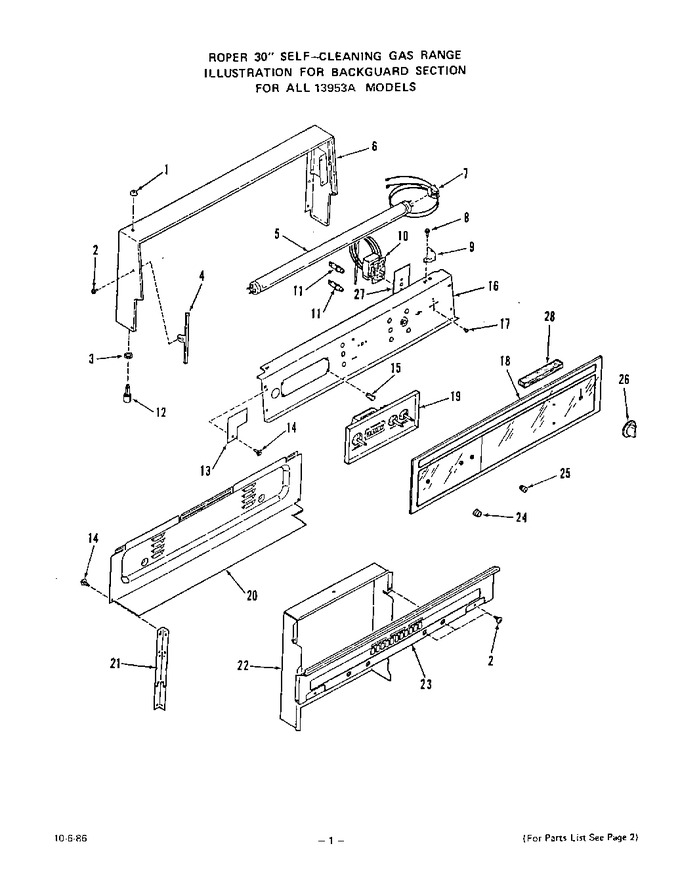

01 - Backguard


02 - Main Top


03 - Griddle


04 - Power Lock


05 - Top Burner


06 - Broiler And Oven Burner


07 - Oven Body


08 - Oven Door


09 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	87403		Knurled Nut		Appelez-nous	-
2	327621		Screw 6-20x3/8``		Appelez-nous	-
3	236129		Pal Nut 3/8-27		Appelez-nous	-
4	299705		End Trim- Top Lamp Glass (lt. Or Rt.)		Appelez-nous	-
5	71734		Flourescent Lamp (20 W-24``)		Appelez-nous	-
6	329724		Frame-backguard		Appelez-nous	-
7	329166		Holder-fluorescent Lamp (right)		Appelez-nous	-
7	328125		Holder-fluorescent Lamp (left)		Appelez-nous	-
8	239113		Screw 10-32x3/8``		Appelez-nous	-
9	DD67-00074A		Bracket-fluorescent Lamp (rt. Or Lt.)   (Replaces: 113236)			Immediately	$ 1.84
10	328279		Oven Thermostat		Appelez-nous	-
11	296317		Indicator Light		Appelez-nous	-
12	288557		Push Switch		Appelez-nous	-
13	301799		Shield		Appelez-nous	-
14	327320		Screw 10-16x7/16``		Appelez-nous	-
15	293577		Tubular Clip (4 Reg)		Appelez-nous	-
16	327738		Mounting Panel-controls		Appelez-nous	-
17	78565		Screw 8-32x3/16``		Appelez-nous	-
18	328286		Top Lamp Glass		Appelez-nous	-
19	320924		Clock W/1 Hr. Timer		Appelez-nous	-
20	328281		Wire Cover-backguard		Appelez-nous	-
21	319361		Support-backguard (lt. Or Rt.)		Appelez-nous	-
22	328487		Shield-flue Deflector		Appelez-nous	-
23	328282		Bottom Front-backguard		Appelez-nous	-
24	294810		Knob-clock (minute Timer)		Appelez-nous	-
25	109225		Knob-clock (start & Stop Time)		Appelez-nous	-
26	329726		Knob-thermostat		Appelez-nous	-
27	330287		Barrier-thermostat		Appelez-nous	-
28	328021		Foam Strip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
