SELECT A DIAGRAM

01 - Backguard


02 - Main Top


03 - Griddle


04 - Power Lock


05 - Top Burner


06 - Broiler And Oven Burner

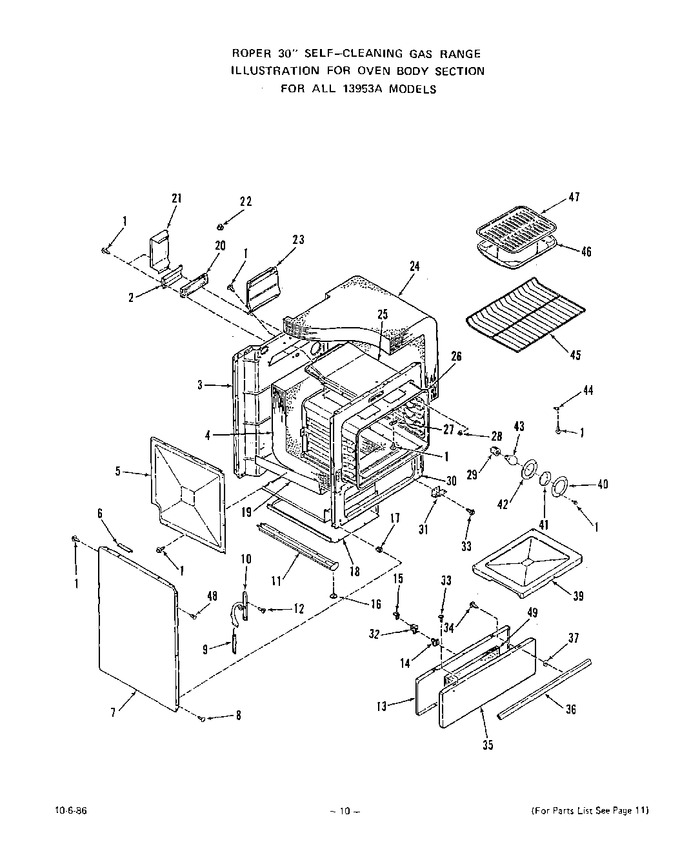

07 - Oven Body


08 - Oven Door


09 - Oven Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	327320		Screw 10-16x7/16``		Appelez-nous	-
2	327809		Wire Shield		Appelez-nous	-
3	330167		Main Back		Appelez-nous	-
4	329146		Insulation-oven Back & Bottom (1 Piece)		Appelez-nous	-
5	328959		Retainer-insulation (lt. Or Rt.)		Appelez-nous	-
6	326914		Spacer-main Top (2 Req)		Appelez-nous	-
7	326055		Body Side (lt. Or Rt.) (white)		Appelez-nous	-
7	326058		Body Side (lt. Or Rt.) (golden Wheat)		Appelez-nous	-
7	326059		Body Side (lt. Or Rt.) (almond)		Appelez-nous	-
7	327939		Body Side (lt. Or Rt.) (platinum)		Appelez-nous	-
7	327940		Body Side (lt. Or Rt.) (toast)		Appelez-nous	-
8	314124		Screw 8abx5/8``		Appelez-nous	-
9	326965		Spring-oven Door (lt. Or Rt.)		Appelez-nous	-
10	326013		Hinge-oven Door (left)		Appelez-nous	-
10	326012		Hinge-oven Door (rgiht)		Appelez-nous	-
11	334811		Base W/levelers-lt. Or Rt.		Appelez-nous	-
12	331704		Screw		Appelez-nous	-
13	335065		Lining-broiler Door		Appelez-nous	-
14	335061		Strike		Appelez-nous	-
15	335059		Bracket-catch		Appelez-nous	-
16	326125		Leg Leveler (4 Req)		Appelez-nous	-
17	330031		Expansion Nut Spacer (4 Req)   (Replaces: 312605)			Immediately	$ 19.92
18	328491		Storage Compartment		Appelez-nous	-
19	331144		Lower Insulation Retainer		Appelez-nous	-
20	330166		Insulation		Appelez-nous	-
21	327808		Wire Shield		Appelez-nous	-
22	324257		Bushing		Appelez-nous	-
23	331564		Flue Deflector		Appelez-nous	-
24	329147		Insulation-oven Top & Sides (1 Piece)		Appelez-nous	-
25	327781		Flue Box		Appelez-nous	-
26	331568		Oven Body		Appelez-nous	-
27	304835		Cover		Appelez-nous	-
28	321539		Clip-thermostat Bulb (2 Req)		Appelez-nous	-
29	87883		Holder-oven Light Bulb		Appelez-nous	-
30	335069		Front Frame		Appelez-nous	-
31	335058		Hinge		Appelez-nous	-
32	335060		Catch		Appelez-nous	-
33	316849		Screw-10-32x1/2``		Appelez-nous	-
34	327320		Screw 10-16x7/16``		Appelez-nous	-
35	330480		Front Panel-storage Door (white)		Appelez-nous	-
35	330483		Front Panel-storage Door (golden Wheat)		Appelez-nous	-
35	330484		Front Panel-storage Door (almond)		Appelez-nous	-
35	330486		Front Panel-storage Door (platinum)		Appelez-nous	-
35	330487		Front Panel-storage Door (toast)		Appelez-nous	-
36	292240		Handle-storage Door		Appelez-nous	-
37	302343		Spacer-handle		Appelez-nous	-
39	331563		Bottom-oven		Appelez-nous	-
40	229372		Retainer-oven Light Lens		Appelez-nous	-
41	114989		Lens-oven Light		Appelez-nous	-
42	229371		Gasket-lens		Appelez-nous	-
43	DA96-01243C		Oven Light Bulb   (Replaces: 111257)				$ 160.00
44	237762		Cover Plate-thermostat Bulb		Appelez-nous	-
45	326069		Oven Rack (2 Req)		Appelez-nous	-
46	331592		Pan-broiler		Appelez-nous	-
47	326297		Broiler Pan Grid		Appelez-nous	-
48	281160		Accordian Rivet (lt. Or Rt.)		Appelez-nous	-
49	303097		Insulation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
