SELECT A DIAGRAM

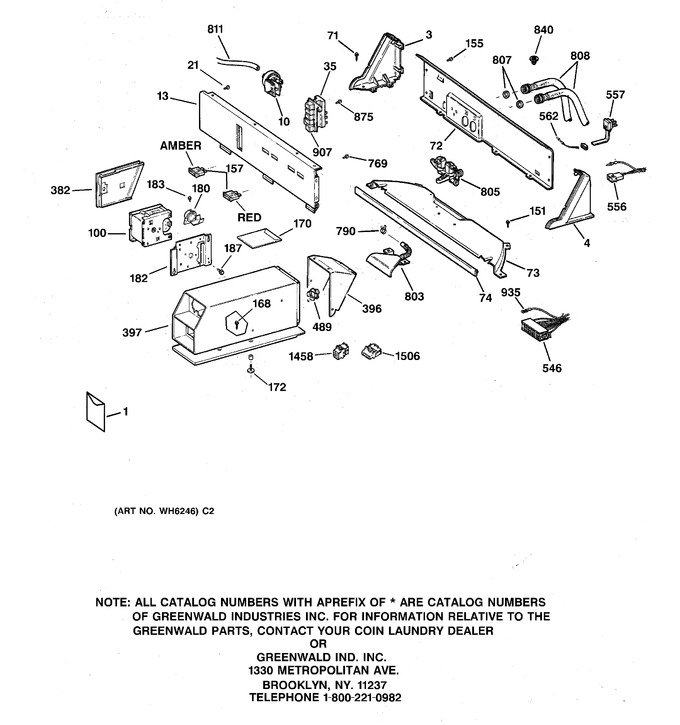

1 - Backsplash & Coin Box Assembly


2 - Cabinet, Cover & Front Panel


3 - Tub, Basket & Agitator


4 - Suspension, Pump & Drive Components


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-15035		Pm Sheet Mini Manual		Appelez-nous	-
1	49-9582		Good Practices Guide		Appelez-nous	-
1	49-9889		Pm Manual Use & Care		Appelez-nous	-
1	31-2809		Pm Instruction Install		Appelez-nous	-
3	WE19X1002		End Cap Lh Ad		Appelez-nous	-
4	WE19X1003		End Cap Rh Ad		Appelez-nous	-
10	WH12X1049		Switch Pressure		Appelez-nous	-
13	WH42X2509		Control Panel Asm		Appelez-nous	-
21	WH2X1185		Scr 8-18 B Ihw 5/16 S		Appelez-nous	-
35	WH12X1058		Switch Pushbutton Asm		Appelez-nous	-
71	WH2X1205		Scr 8-18 B 1/2 Hxw P		Appelez-nous	-
72	WH46X337		Panel Back		Appelez-nous	-
73	WH46X341		Cover Bottom		Appelez-nous	-
74	WH8X379		Gasket Backsplash		Appelez-nous	-
100	WH12X1052		Timer Coin-op		Appelez-nous	-
151	WH2X1210		Scr 8-18 B Ihw 1/2 S N		Appelez-nous	-
155	WH2X1233		Scr 8-18 Ab Trt 5/8 S		Appelez-nous	-
157	WH12X624		Lamp Asm-red		Appelez-nous	-
157	WG04F07410		Lamp Asm-amber   (Replaces: WE1X950)				$ 10.81
168	WZ02X0468		Scr 10-32 M Hs 1/8 S		Appelez-nous	-
170	WH49X264		Pm Envelope Asm Lockdown		Appelez-nous	-
172	WH2X1234		Scr 1/4-20mac Pnt .95		Appelez-nous	-
180	* 72-33-4		Clutch Asm		Appelez-nous	-
182	* 74-05		Bracket Timer		Appelez-nous	-
183	8-32X5/16		Screw-cap		Appelez-nous	-
187	WH2X946		Scr 10-32 M Hxw 1/4 S		Appelez-nous	-
382	WH42X2505		Door & Latch Asm		Appelez-nous	-
396	WH42X2504		Adapter Meter Case		Appelez-nous	-
397	WH42X2503		Meter Case Ad		Appelez-nous	-
461	WZ05X0158		Screw 8-32x3/8		Appelez-nous	-
489	WH1X2572		Sleeve Split		Appelez-nous	-
546	WH12X870		Housing Terminal Bk		Appelez-nous	-
556	WH12X497		Housing Terminal		Appelez-nous	-
557	WH19X305		Cord Power Asm		Appelez-nous	-
562	WB17X5054		Terminal		Appelez-nous	-
769	WB1X500		Scr 8-18 B Hxw 1/4 S		Appelez-nous	-
790	WH1X2036		Clamp Hose		Appelez-nous	-
803	WH41X366		Water Inlet & Hose		Appelez-nous	-
805	WH13X86		Valve Asm Water		Appelez-nous	-
807	WH2X42		Hose Washer		Appelez-nous	-
808	WH41X342		Hose Intake		Appelez-nous	-
811	WG04F03638		Hose Pressure Switch   (Replaces: WH41X365)			Immediately	$ 15.88
840	WH1X2267		Screen Washer		Appelez-nous	-
875	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.97
907	WD9X206		Pushbutton		Appelez-nous	-
935	WD1X1434		Terminal Special		Appelez-nous	-
1458	WB17X5073		Term Blk Asm-1 Pin(1458)		Appelez-nous	-
1506	WB17X5059		Housing Socket Pkg 9 Pin		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
